How Many Questions Of NSE7_LED-7.0 Pdf Exam

NEW QUESTION 1
Exhibit.

Exhibit.

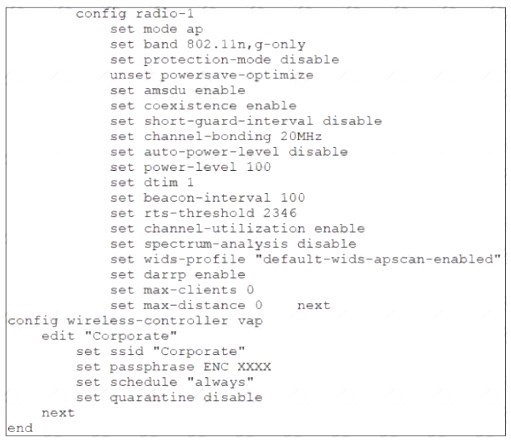

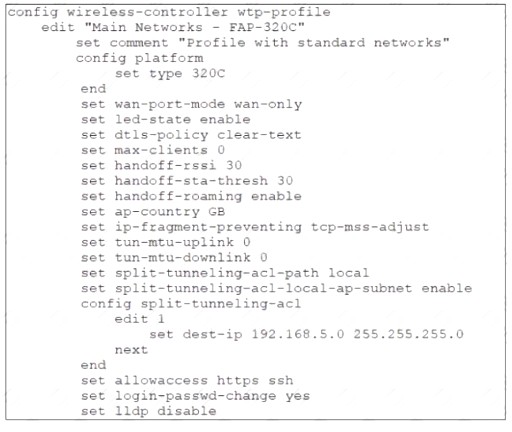

Refer to the exhibits
In the wireless configuration shown in the exhibits, an AP is deployed in a remote site and has a wireless network (VAP) called Corporate deployed to it
The network is a tunneled network however clients connecting to a wireless network require access to a local printer Clients are trying to print to a printer on the remote site but are unable to do so
Which configuration change is required to allow clients connected to the Corporate SSID to print locally?

• A. Configure split-tunneling in the vap configuration
• B. Configure split-tunneling in the wtp-profile configuration
• C. Disable the Block Intra-SSID Traffic (intra-vap-privacy) setting on the SSID (VAP) profile
• D. Configure the printer as a wireless client on the Corporate wireless network

Answer: A

Explanation:
According to the Fortinet documentation1, “Split tunneling allows you to specify which traffic is tunneled to the FortiGate and which traffic is sent directly to the Internet. This can improve performance and reduce bandwidth usage.” Therefore, by configuring split-tunneling in the vap configuration, you can allow the clients connected to the Corporate SSID to access both the corporate network and the local printer. Option B is incorrect because split-tunneling is configured at the vap level, not the wtp-profile level. Option C is incorrect because blocking intra-SSID traffic prevents wireless clients on the same SSID from communicating with each other, which is not related to accessing a local printer. Option D is unnecessary and impractical because the printer does not need to be a wireless client on the Corporate wireless network to be accessible by the clients.

NEW QUESTION 2
When you configure a FortiAP wireless interface for auto TX power control which statement describes how it configures its transmission power"?

• A. Every 30 seconds the AP will measure the signal strength of the AP using the client The AP will adjust its signal strength up or down until the AP signal is detected at -70 dBm
• B. Every 30 seconds FortiGate measures the signal strength of adjacent AP interfaces It will adjust its own AP power to match the adjacent AP signal strength
• C. Every 30 seconds FortiGate measures the signal strength of adjacent FortiAP interfaces It will adjust the adjacent AP power to be detectable at -70 dBm
• D. Every 30 seconds FortiGate measures the signal strength of the weakest associated client The AP will then configure its radio power to match the detected signal strength of the client

Answer: A

Explanation:
According to the FortiAP Configuration Guide1, “Auto TX power control allows the AP to adjust its transmit power based on the signal strength of the client. The AP will measure the signal strength of the client every 30 seconds and adjust its transmit power up or down until the client signal is detected at -70 dBm.” Therefore, option A is true because it describes how the FortiAP wireless interface configures its transmission power when auto TX power control is enabled. Option B is false because FortiGate does not measure the signal strength of adjacent AP interfaces, but rather the FortiAP does. Option C is false because FortiGate does not
adjust the adjacent AP power, but rather the FortiAP adjusts its own power. Option D is false becauseFortiGate does not measure the signal strength of the weakest associated client, but rather the FortiAP does.

NEW QUESTION 3
A wireless network in a school provides guest access using a captive portal to allow unregistered users to self-register and access the network The administrator is requested to update the existing configuration to provide captive portal authentication through a secure connection (HTTPS)
Which two changes must the administrator make to enforce HTTPS authentication"? (Choose two >

• A. Create a new SSID with the HTTPS captive portal URL
• B. Enable HTTP redirect in the user authentication settings
• C. Disable HTTP administrative access on the guest SSID to enforce HTTPS connection
• D. Update the captive portal URL to use HTTPS on FortiGate and FortiAuthenticator

Answer: BD

Explanation:
According to the FortiGate Administration Guide, “To enable HTTPS authentication, you must enable HTTP redirect in the user authentication settings. This redirects HTTP requests to HTTPS. You must also update the captive portal URL to use HTTPS on both FortiGate and FortiAuthenticator.” Therefore, options B and D are true because they describe the changes that the administrator must make to enforce HTTPS authentication for the captive portal. Option A is false because creating a new SSID with the HTTPS captive portal URL is not required, as the existing SSID can be updated with the new URL. Option C is false because disabling HTTP
administrative access on the guest SSID will not enforce HTTPS connection, but rather block HTTP connection.

NEW QUESTION 4
Refer to the exhibit.

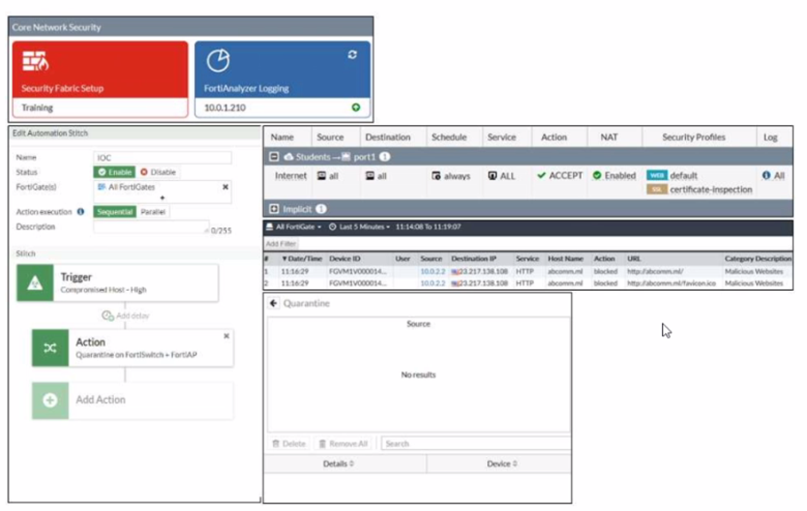

Examine the FortiGate configuration FortiAnalyzer logs and FortiGate widget shown in the exhibit
An administrator is testing the Security Fabric quarantine automation The administrator added FortiAnalyzer to the Security Fabric and configured an automation stitch to automatically quarantine compromised devices The test device (::.:.:.!) s connected to a managed Fort Switch dev :e
After trying to access a malicious website from the test device, the administrator verifies that FortiAnalyzer has a log (or the test connection However the device is not getting quarantined by FortiGate as shown in the quarantine widget
Which two scenarios are likely to cause this issue? (Choose two)

• A. The web filtering rating service is not working
• B. FortiAnalyzer does not have a valid threat detection services license
• C. The device does not have FortiClient installed
• D. FortiAnalyzer does not consider the malicious website an indicator of compromise (IOC)

Answer: BD

Explanation:
According to the exhibits, the administrator has configured an automation stitch to automatically quarantine compromised devices based on FortiAnalyzer’s threat detection services. However, according to the FortiAnalyzer logs, the test device is not detected as compromised by FortiAnalyzer, even though it tried to access a malicious website. Therefore, option B is true because FortiAnalyzer does not have a valid threat detection services license, which is required to enable the threat detection services feature. Option D is also true because FortiAnalyzer does not consider the malicious website an indicator of compromise (IOC), which is a criterion for identifying compromised devices. Option A is false because the web filtering rating service is working, as shown by the log entry that indicates that the test device accessed a URL with a category of “Malicious Websites”. Option C is false because the device does not need to have FortiClient installed to be quarantined by FortiGate, as long as it is connected to a managed FortiSwitch device.

NEW QUESTION 5
Refer to the exhibit.

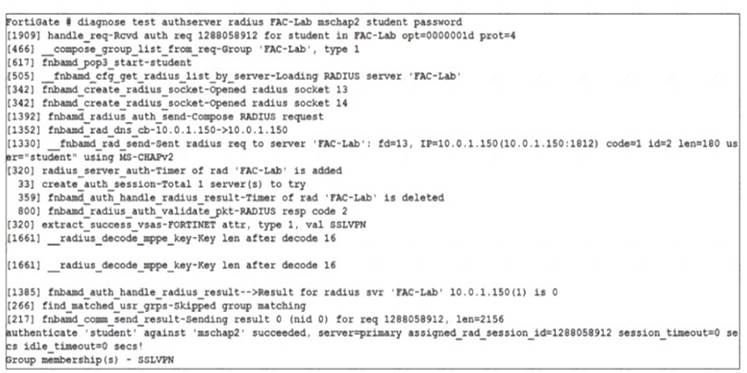

Examine the debug output shown in the exhibit
Which two statements about the RADIUS debug output are true'' (Choose two)

• A. The user student belongs to the SSLVPN group
• B. User authentication failed
• C. The RADIUS server sent a vendor-specific attribute in the RADIUS response
• D. User authentication succeeded using MSCHAP

Answer: AD

Explanation:
According to the exhibit, the debug output shows a RADIUS debug output from FortiGate. The output shows that FortiGate sent a RADIUS Access-Request packet to FortiAuthenticator with the username student and received a RADIUS Access-Accept packet from FortiAuthenticator with a Class attribute containing SSLVPN. Therefore, option A is true because it indicates that the user student belongs to the SSLVPN group on FortiAuthenticator. The output also shows that FortiGate used MSCHAP as the authentication method and received a MS-MPPE-Send-Key and a MS-MPPE-Recv-Key from FortiAuthenticator. Therefore, option D is true because it indicates that user authentication succeeded using MSCHAP. Option B is false because user authentication did not fail, but rather succeeded. Option C is false because FortiAuthenticator did not send a vendor-specific attribute in the RADIUS response, but rather standard attributes defined by RFCs.

NEW QUESTION 6
Refer to the exhibit.

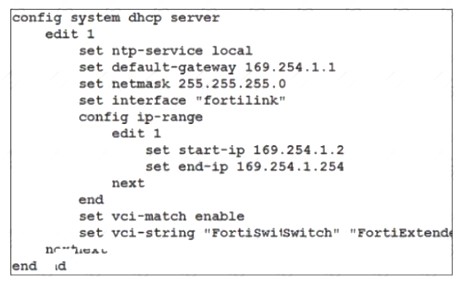

By default FortiOS creates the following DHCP server scope for the FortiLink interface as shown in the exhibit
What is the objective of the vci-string setting?

• A. To ignore DHCP requests coming from FortiSwitch and FortiExtender devices
• B. To reserve IP addresses for FortiSwitch and FortiExtender devices
• C. To restrict the IP address assignment to FortiSwitch and FortiExtender devices
• D. To restrict the IP address assignment to devices that have FortiSwitch or FortiExtender as their hostname

Answer: C

Explanation:
According to the exhibit, the DHCP server scope for the FortiLink interface has a vci-string setting with the value “Cisco AP c2700”. This setting is used to match the vendor class identifier (VCI) of the DHCP clients that request an IP address from the DHCP server. The VCI is a text string that uniquely identifies a type of vendor device. Therefore, option C is true because the vci-string setting restricts the IP address assignment to FortiSwitch and FortiExtender devices, which use the VCI “Cisco AP c2700”. Option A is false because the vci-string setting does not ignore DHCP requests coming from FortiSwitch and FortiExtender devices, but rather accepts them. Option B is false because the vci-string setting does not reserve IP addresses for FortiSwitch and FortiExtender devices, but rather assigns them dynamically. Option D is false because the vci-string setting does not restrict the IP address assignment to devices that have FortiSwitch or FortiExtender as their hostname, but rather to devices that have “Cisco AP c2700” as their VCI.

NEW QUESTION 7
What is the purpose of enabling Windows Active Directory Domain Authentication on FortiAuthenticator?

• A. It enables FortiAuthenticator to use Windows administrator credentials to perform an LDAP lookup for a user search
• B. It enables FortiAuthenticator to use a Windows CA certificate when authenticating RADIUS users
• C. It enables FortiAuthenticator to import users from Windows AD
• D. It enables FortiAuthenticator to register itself as a Windows trusted device to proxy authentication using Kerberos

Answer: D

Explanation:
According to the FortiAuthenticator Administration Guide2, “Windows Active Directory domain authentication enables FortiAuthenticator to join a Windows Active Directory domain as a machine entity and proxy authentication requests using Kerberos.” Therefore, option D is true because it describes the purpose of enabling Windows Active Directory domain authentication on FortiAuthenticator. Option A is false because FortiAuthenticator does not need Windows administrator credentials to perform an LDAP lookup for a user search. Option B is false because FortiAuthenticator does not use a Windows CA certificate when authenticating RADIUS users, but rather its own CA certificate. Option C is false because FortiAuthenticator does not import users from Windows AD, but rather synchronizes them using LDAP or FSSO.

NEW QUESTION 8
Which two statements about the MAC-based 802 1X security mode available on FortiSwitch are true? (Choose two.)

• A. FortiSwitch authenticates a single device and opens the port to other devices connected to the port
• B. FortiSwitch authenticates each device connected to the port
• C. It cannot be used in conjunction with MAC authentication bypass
• D. FortiSwitch can grant different access levels to each device connected to the port

Answer: BD

Explanation:
According to the FortiSwitch Administration Guide, “MAC-based 802.1X security mode allows you to authenticate each device connected to a port using its MAC address as the username and password.” Therefore, option B is true because it describes the MAC-based 802.1X security mode available on FortiSwitch. Option D is also true because FortiSwitch can grant different access levels to each device connected to the port based on the user group and security policy assigned to them. Option A is false because FortiSwitch does not authenticate a single device and open the port to other devices connected to the port, but rather authenticates each device individually. Option C is false because MAC-based 802.1X security mode can be used in conjunction with MAC authentication bypass (MAB) or EAP pass-through modes, which are fallback options for non-802.1X devices.

NEW QUESTION 9
Which two statements about MAC address quarantine by redirect mode are true? (Choose two)

• A. The quarantined device is moved to the quarantine VLAN
• B. The device MACaddress is added to the Quarantined Devices firewall address group
• C. It is the default mode for MAC address quarantine
• D. The quarantined device is kept in the current VLAN

Answer: BD

Explanation:
According to the FortiGate Administration Guide, “MAC address quarantine by redirect mode allows you to quarantine devices by adding their MAC addresses to a firewall address group called Quarantined Devices. The quarantined devices are kept in their current VLANs, but their traffic is redirected to a quarantine portal.” Therefore, options B and D are true because they describe the statements about MAC address quarantine by redirect mode. Option A is false because the quarantined device is not moved to the quarantine VLAN, but rather kept in the current VLAN. Option C is false because redirect mode is not the default mode for MAC address quarantine, but rather an alternative mode that can be enabled by setting mac-quarantine-mode to redirect.
https://docs.fortinet.com/document/fortiap/7.0.0/configuration-guide/734537/radius-authenticated-dynamic-vlan
: https://docs.fortinet.com/document/fortigate/7.0.0/administration-guide/734537/mac-address-quarantine

NEW QUESTION 10
Which CLI command should an administrator use to view the certificate verification process in real time?

• A. diagnose debug application foauthd -1
• B. diagnose debug application radiusd -1
• C. diagnose debug application authd -1
• D. diagnose debug application fnbamd -1

Answer: A

Explanation:
According to the FortiOS CLI Reference Guide, “The diagnose debug application foauthd command enables debugging of certificate verification process in real time.” Therefore, option A is true because it describes the CLI command that an administrator should use to view the certificate verification process in real time. Option B is false because diagnose debug application radiusd -1 enables debugging of RADIUS authentication process, not certificate verification process. Option C is false because diagnose debug application authd -1 enables debugging of authentication daemon process, not certificate verification process. Option D is false because diagnose debug application fnbamd -1 enables debugging of FSSO daemon process, not certificate verification process.

NEW QUESTION 11
You are configuring a FortiGate wireless network to support automated wireless client quarantine using IOC Which two configurations must you put in place for a wireless client to be quarantined successfully? (Choose two)

• A. Configure the wireless network to be in tunnel mode
• B. Configure the FortiGate device in the Security Fabric with a FortiAnalyzer device
• C. Configure a firewall policy to allow communication
• D. Configure the wireless network to be in bridge mode

Answer: AB

Explanation:
According to the FortiGate Administration Guide, “To enable automated wireless client quarantine using IOC, you must configure the following settings: Configure your wireless network to be in tunnel mode. This allows FortiGate to inspect all wireless traffic and applysecurity policies. Configure your FortiGate device in the Security Fabric with a FortiAnalyzer device. This allows FortiAnalyzer to detect indicators of compromise (IOC) from wireless traffic and send quarantine commands to FortiGate.” Therefore, options A and B are true because they describe the configurations that must be put in place for a wireless client to be quarantined successfully using IOC. Option C is false because configuring a firewall policy to allow communication is not required, as the default firewall policy for tunnel mode wireless networks is to allow all traffic. Option D is false because configuring the wireless network to be in bridge mode is not supported, as FortiGate cannot inspect or quarantine wireless traffic in bridge mode.

NEW QUESTION 12
......
