NEW QUESTION 1

Which utility can you use to identify the cause of a traffic-flow blockage between two devices ina network?

• A. ACL analysis tool in APIC-EM
• B. ACL path analysis tool in APIC-EM
• C. APIC-EM automation scheduler
• D. iWan application

Answer: B

NEW QUESTION 2

Which two characteristics of a link-state routing protocol are true? (Choose two)

• A. Each router in the network maintains a separate routing database of its own neighbors.
• B. Each router uses LSAs to exchange the information about the network topology.
• C. Each router uses Dijkstra's algorithm to determine the shortest path.
• D. Each router establishes an adjacency to every other router in the network
• E. Each router uses the same path to each network in the topology.

Answer: BC

NEW QUESTION 3

Which options are requirements for configuring RIPv2 on an IPv4 network router? (Choose two.)

• A. enabling RIP on the router
• B. allowing unicast updates for RIP
• C. enabling RIP authentication
• D. connecting RIP to a WAN interface
• E. enabling automatic route summarrization

Answer: AB

NEW QUESTION 4

You notice that packets that are sent from a local host to well-known service on TCP port 80 remote host are sometimes lost. You suspect an ACL issue. Which two APIC-EM path Trace ACL-analysis option should you use to troubleshooting the problem? (Choose two.)

• A. destination port
• B. QoS
• C. debug
• D. protocol
• E. performance Monitor

Answer: AC

NEW QUESTION 5

Which two conditions can StackWise use to determine the master of the stack? (Choose two )

• A. the lowest member priority
• B. the lowest system MAC address
• C. the greatest number of configured VLANs
• D. the highest system MAC address
• E. the highest member priority

Answer: BE

NEW QUESTION 6

Which statement describes the effect of the copy run start command on a router in enable mode?

• A. The running configuration of the router is savedto NVRAM and used during the boot process.
• B. The router reboots and loads the last saved running configuration.
• C. A copy of the running configuration of the router is sent by FTP to a designated server.
• D. A new running configuration is loaded from flashmemory to the router.

Answer: A

NEW QUESTION 7

Which two descriptions of distance-vector routing protocols are true? (Choose two)

• A. Each router is aware of only its neighbor routers.
• B. Each router determines its own path to a destination.
• C. Each router views the network as if it were the root of its own topology.
• D. The hop count metric is used to determine the best path to a destination.
• E. Each router in the network shares a database of known routes.

Answer: DE

NEW QUESTION 8

Which two statements about the ip default-network command are true? (Choose two.)

• A. It specifies the network that is used when the device cannot find an exact match in the routing table.
• B. It can be configured on a Layer 2 switch to specify the next hop.
• C. It specifies the network that is used when the device finds an exact match in the routing table.
• D. It requires IP routing to be enabled on the device.
• E. It requires IP routing to be disabled on the device.

Answer: CD

Explanation:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_pi/configuration/xe-3se/3650/iri-xe-3se-3650-book/ir

NEW QUESTION 9

Which two statements about LLDP are True? (Choose Two)

• A. it enables systems to learn about one another over the data-link layer
• B. it uses mandatory TLVs to discover the neighboring devices
• C. it is implemented in accordance with the 802.11a specification
• D. if functions at layer 2 and layer 3
• E. it is a cisco-proprietary technology

Answer: AC

NEW QUESTION 10

which port security mode can assist with troubleshooting by keeping count of violations?

• A. access.
• B. protect.
• C. restrict.
• D. shutdown.

Answer: C

NEW QUESTION 11

Which command can you enter to configure an IPv6 floating static route?

• A. router(config)#ipv6 route FE80:0202::/32 serial 0/1 1
• B. router (config)#ipv6 route ::/0 serial 0/1
• C. router(config)#ipv6 route static resolve default
• D. router(config)#ipv6 route FE80.0202::/32 serial 0/1 201

Answer: D

NEW QUESTION 12

Which statement about NTP is true?

• A. The default authentication key number is 1.
• B. The default source address of an NTP message is the interface connected to the next-hop for the server peer address.
• C. The default stratum number is 5.
• D. Each device is enabled as a server by default and propagates NTP messages to all peers on its default LAN.

Answer: B

NEW QUESTION 13

Refer to the exhibit.

The network shown in diagram is experiencing connectivity problems. Which two configuration changes will correct the problems? (Choose two.)

• A. Configure the gateway on Host A as 10.1.1.1.
• B. Configure the gateway on Host B as 10.1.2.254.
• C. Configure the IP address of Host A as 10.1.2.2.
• D. Configure the IP address of Host B as 10.1.2.2.
• E. Configure the masks on both hosts to be 255.255.255.224.
• F. Configure the masks on both hosts to be 255.255.255.240.

Answer: BD

Explanation:
The switch 1 is configured with two VLANs: VLAN1 and VLAN2. The IP information of member Host A in VLAN1 is as follows: Address : 10.1.1.126
Mask : 255.255.255.0
Gateway : 10.1.1.254
The IP information of member Host B in VLAN2 is as follows: Address : 10.1.1.12
Mask : 255.255.255.0
Gateway : 10.1.1.254
The configuration of sub-interface on router 2 is as follows: Fa0/0.1 -- 10.1.1.254/24 VLAN1
Fa0/0.2 -- 10.1.2.254/24 VLAN2
It is obvious that the configurations of the gateways of members in VLAN2 and the associated network segments are wrong. The layer3 addressing information of Host B should be modified as follows:
Address : 10.1.2.X Mask : 255.255.255.0

NEW QUESTION 14

which value must you configure on a device beforee EIGRP For IPV6 Can start Running ?

• A. Process ID
• B. Router ID
• C. Public IP Address
• D. Loopback interface

Answer: B

NEW QUESTION 15

Which two technologies can combine multiple physical switches into one logical switch? (Choose two.)

• A. StackWise
• B. VSS
• C. VRRP
• D. GLBP
• E. HSRP

Answer: AB

NEW QUESTION 16

Refer to the exhibit.

The server on this network is configured with an MTU of 9216, and the two interfaces on router R1 are configured for MTUs of 2000 and 3000 as shown. What is the largest packet size that can pass between the workstation and the server?

• A. 1500 bytes
• B. 2000 bytes
• C. 3000 bytes
• D. 9216 bytes

Answer: D

NEW QUESTION 17

which three options are fields in a basic ethernet data frame ?

• A. preamble
• B. time to live
• C. version
• D. header checksum
• E. length type
• F. frame check sequence

Answer: AEF

NEW QUESTION 18

Drag and drop the benefits of a cisco wireless Lan controller from the left onto the correct examples on the right

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 19

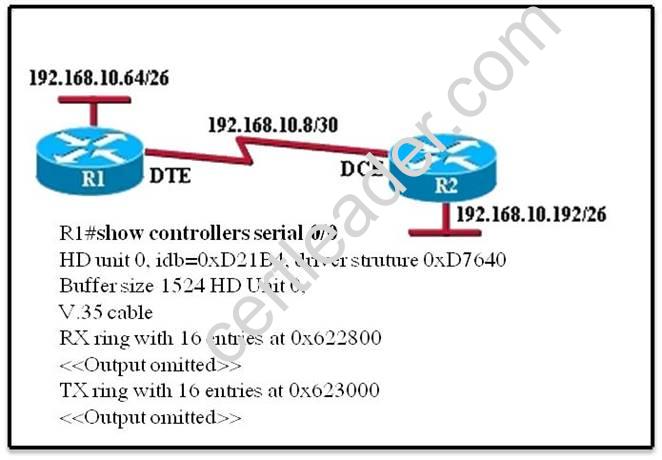

Refer to the exhibit.

An administrator cannot connect from R1 to R2. To troubleshoot this problem, the administrator has entered the command shown in the exhibit. Based on the output shown, what could be the problem?

• A. The serial interface is configured for the wrong frame size.
• B. The serial interface does not have a cable attached.
• C. The serial interface has the wrong type of cable attached.
• D. The serialinterface has a full buffer.
• E. The serial interface is configured for half duplex.

Answer: C

NEW QUESTION 20

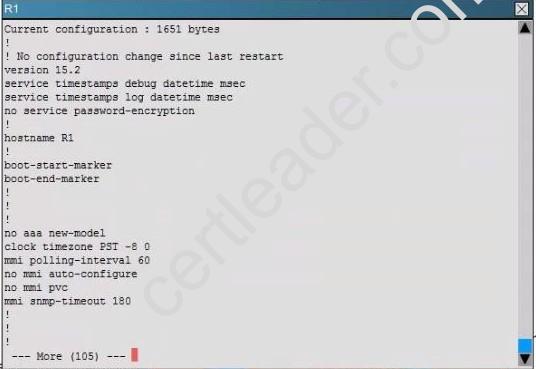

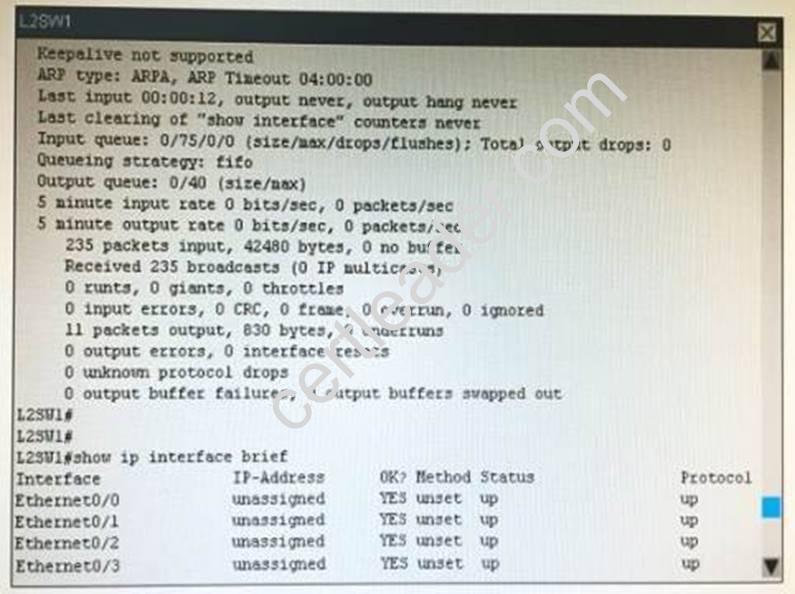

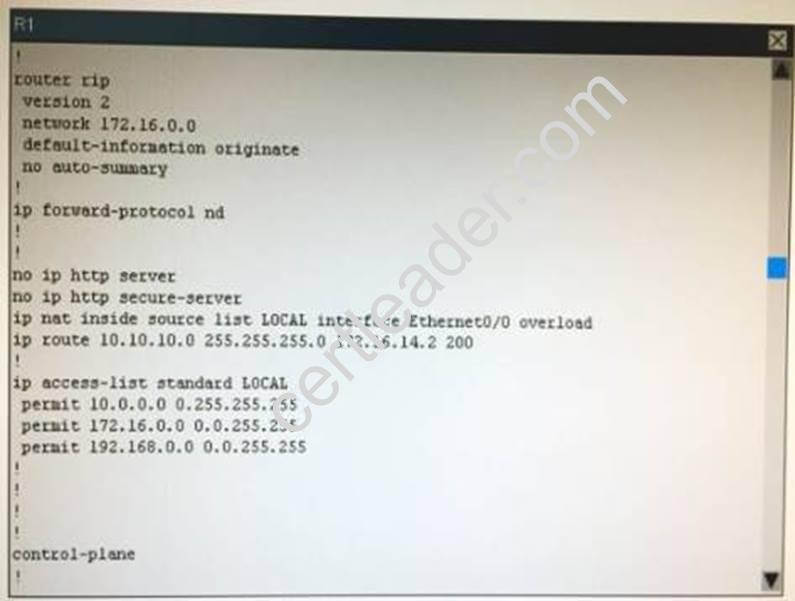

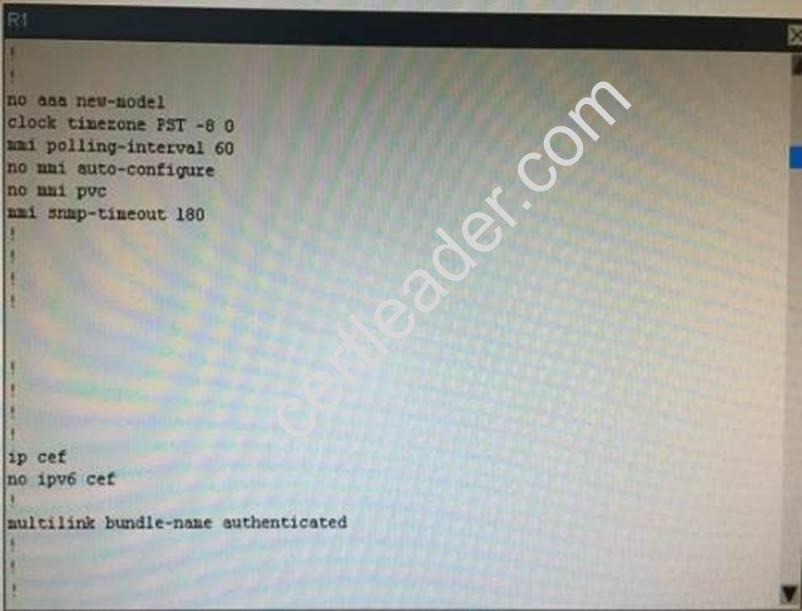

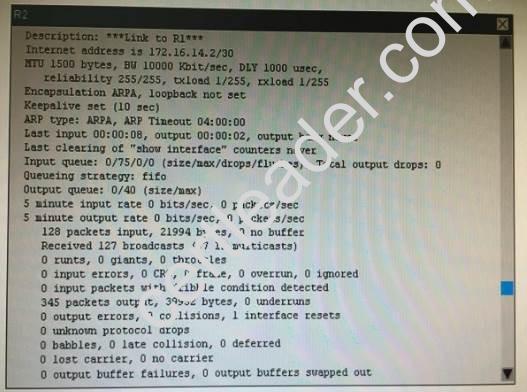

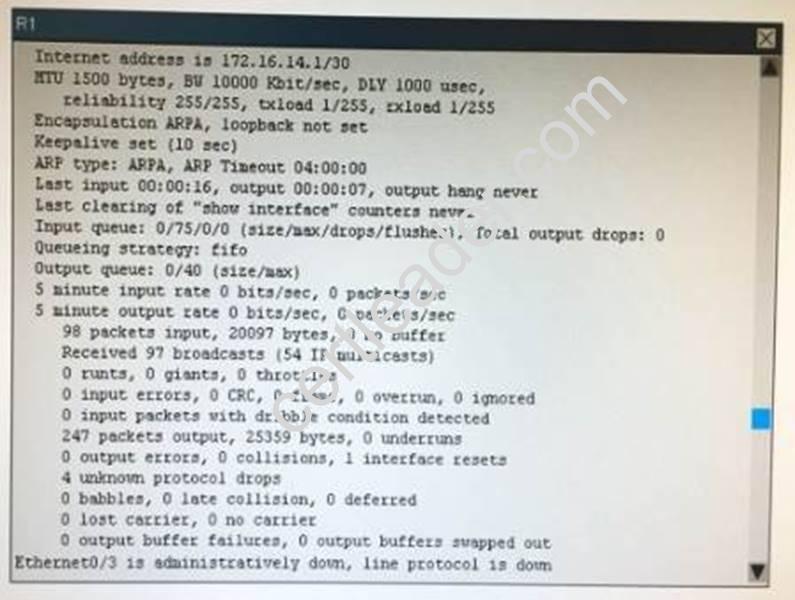

Scenario:
You work for a company that provides managed network services, and of your real estate clients running a small office is experiencing network issues, Troubleshoot the network issues.
Router R1 connects the main office to internet, and routers R2 and R3 are internal routers NAT is enabled on Router R1.
The routing protocol that is enable between routers R1, R2, and R3 is RIPv2.
R1 sends default route into RIPv2 for internal routers to forward internet traffic to R1.
Server1 and Server2 are placed in VLAN 100 and 200 respectively, and dare still running router on stick configuration with router R2.
You have console access on R1, R2, R3, and L2SW1 devices. Use only show commands to troubleshoot the issues.





















































Users in the main office complain that they are unable to reach internet sites.
You observe that internet traffic that is destined towards ISP router is not forwarded correctly on Router R1. What could be an issue?
Ping to Internet server shows the following results from R1: R1#ping 209.165.200.225
Type escape sequence to abort.
Sending 5, 100-byte ICMP Echos to 209.165.200.225. timeout is 2 seconds: Success rate is 0 percent (0/5)

• A. The next hop router address for the default route is incorrectly configured.
• B. Default route pointing to ISP router is configured with AD of 255.
• C. Default route pointing to ISP router is not configured on Router R1
• D. Router R1 configured as DHCP client is not receiving default route via DHCP from ISP router.

Answer: C

Explanation:
(Default Static Route will fix the problem to connect to ISP router)

NEW QUESTION 21

Which two statements about configuring an EtherChannel on a Cisco switch are true? (Choose two.)

• A. The interfaces configured in the EtherChannel must be on the same physical switch.
• B. The interfaces configured in the EtherChannel must operate at the same speed and duplex mode
• C. An EtherChannel can operate in Layer 2 mode only.
• D. The interfaces configured in the EtherChannel must be part of the same VLAN or trunk.
• E. The interfaces configured in the EtherChannel must have the same STP port path cost

Answer: BD

NEW QUESTION 22

A workstation has just resolved a browser URL to the IP address of a server. Which protocol will the workstation now use to determine the destination MAC address to be placed into frames directed toward the sever?

• A. ARP
• B. RARP
• C. DNS
• D. DHCP
• E. HTTP

Answer: A

NEW QUESTION 23

Which two tools do you use to troubleshoot DNS issues? (Choose two)

• A. RFP tool
• B. ping
• C. Feature Navigator
• D. Embedded Event Manager
• E. traceroute

Answer: DE

NEW QUESTION 24

Which two statements about UDP are true? (Choose two)

• A. It can transmit data at a rate higher than the path capacity
• B. It uses a three-way handshake to ensure that traffic is transmated properly
• C. It guarantees packet delivery
• D. it includes protection against duplicate packets
• E. it can be used for multicast and broadcast traffic

Answer: AE

NEW QUESTION 25

Where does the configuration reside when a helper address is configured to support DHCP ?

• A. on the switch trunk interface.
• B. on the router closest to the client.
• C. on the router closest to the server.
• D. on every router along the path.

Answer: B

NEW QUESTION 26

Drag and drop the networking features or functions from the left onto the planes on which they operate on the right .

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 27

What are two benefits of private IPv4 IP addresses? (Choose two.)

• A. They can be assigned to devices not requiring Internet connections.
• B. They eliminate the necessity for NAT policies.
• C. They eliminate duplicate IP conflicts.
• D. They are routed to the Internet the same as public IP addresses.
• E. They are less costly than public IP addresses.

Answer: AE

NEW QUESTION 28

Which value is used to determine the active router in an HSRP default configuration ?

• A. router tracking number
• B. router IP address
• C. router priority
• D. router loopback address

Answer: C

NEW QUESTION 29


Refer to the topology and switching table shown in the graphic. Host B sends a frame to Host C. Which option describes what the switch will do with the frame?

• A. send an ICMP Host Unreachable message to Host B
• B. return the frame to Host B
• C. drop the frame
• D. send the frame out all ports except port 0/2
• E. record the destination MAC address in the switching tableand send the frame directly to Host C
• F. send an ARP request for Host C

Answer: D

NEW QUESTION 30

Scenario:
You are a junior network engineer for a financial company, and the main office network is experiencing network issues. Troubleshoot the network issues.
Router R1 connects the main office to the internet, and routers R2 and R3 are internal routers. NAT is enabled on router R1.
The routing protocol that is enabled between routers R1, R2 and R3 is RIPv2.
R1 sends the default route into RIPv2 for the internal routers to forward internet traffic to R1.
You have console access on R1, R2 and R3 devices. Use only show commands to troubleshoot the issues.

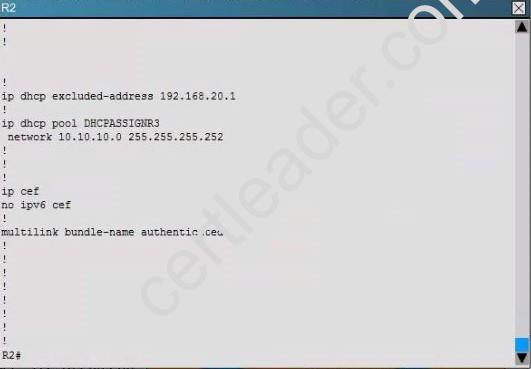

Examine the DHCP configuration between R2 and R3; R2 is configured as the DHCP server and R3 as the client. What is the reason R3 is not receiving the IP address via DHCP?

• A. On R2. The network statement In the DHCP pool configuration is incorrectly configured.
• B. On R3. DHCP is not enabled on the interface that is connected to R2.
• C. On R2, the interface that is connected to R3 is in shutdown condition.
• D. On R3, the interface that is connected to R2 is in shutdown condition.

Answer: B

Explanation:
Please check the below:
