NEW QUESTION 1
Which two actions extend a Layer 2 domain beyond the ACI fabric? (Choose two.)

• A. extending the routed domain out of the ACI fabric
• B. creating a single homed Layer 3 Out
• C. creating an external physical network
• D. extending the bridge domain out of the ACI fabric
• E. extending the EPG out of the ACI fabric

Answer: AE

NEW QUESTION 2
An engineer has set the VMM resolution immediacy to pre-provision in a Cisco ACI environment. No Cisco Discovery Protocol neighborship has been formed between the hypervisors and the ACI fabric leaf nodes. How does this affect the download policies to the leaf switches?

• A. No policies are downloaded because LLDP is the only supported discovery protocol.
• B. Policies are downloaded when the hypervisor host is connected to the VMM VDS.
• C. Policies are downloaded to the ACI leaf switch regardless of Cisco Discovery Protocol neighborship.
• D. No policies are downloaded because there is no discovery protocol neighborship.

Answer: C

NEW QUESTION 3
Which two types of interfaces are supported on border leaf switches to connect to an external router? (Choose two.)

• A. subinterface with VXLAN tagging
• B. subinterface with 802.1Q tagging
• C. FEX host interface
• D. out of band interface
• E. Switch Virtual Interface

Answer: BE

NEW QUESTION 4

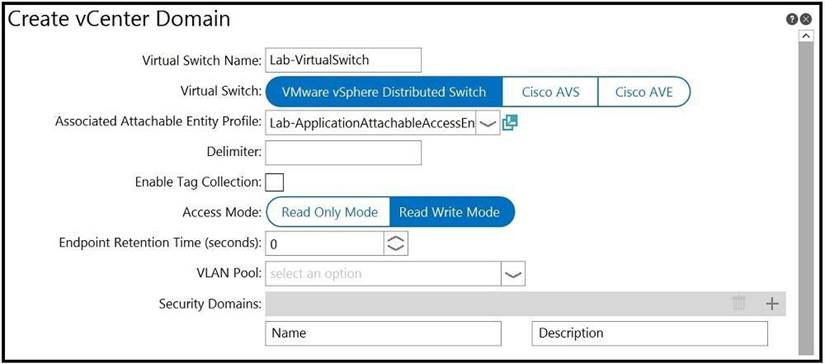

Refer to the exhibit.

An engineer is integrating a VMware vCenter with Cisco ACI VMM domain configuration. ACI creates port-group names with the format of “Tenant | Application | EPG”. Which configuration option is used to generate port groups with names formatted as “Tenant=Application=EPG”?

• A. enable tag collection
• B. security domains
• C. delimiter
• D. virtual switch name

Answer: D

NEW QUESTION 5

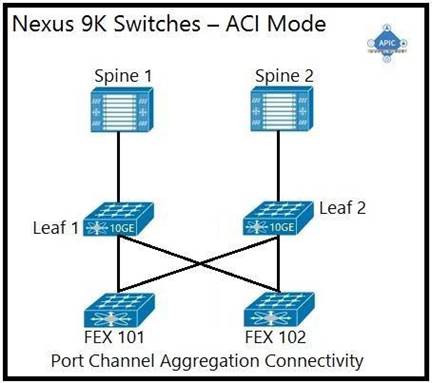

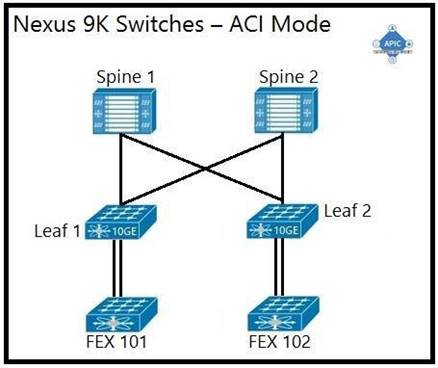

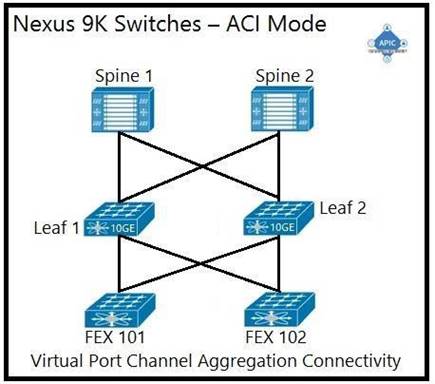

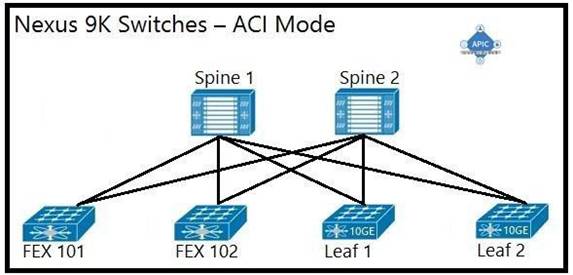

An engineer is implementing a Cisco ACI data center network that includes Cisco Nexus 2000 Series 10G fabric extenders. Which physical topology is supported?
A.

B.

C.

• A.

Answer: D

NEW QUESTION 6

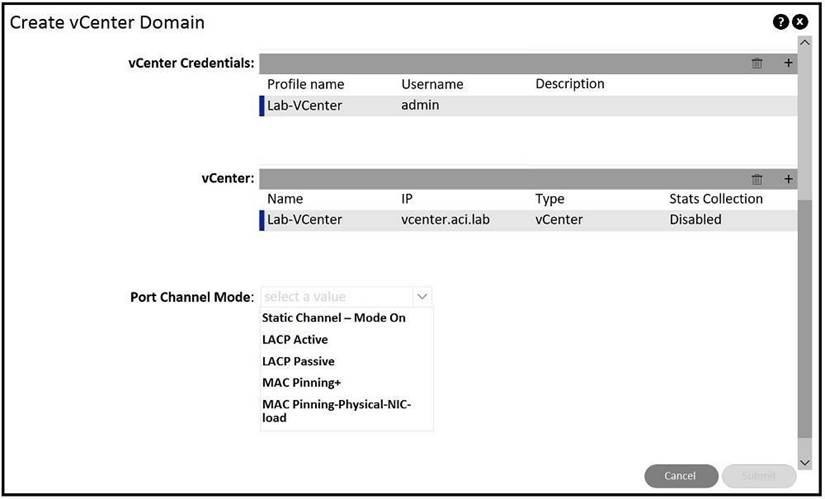

Refer to the exhibit.

An engineer is implementing Cisco ACI – VMware vCenter integration for a blade server that lacks support of bonding. Which port channel mode results in “route based on originating virtual port” on the VMware VDS?

• A. Static Channel – Mode On
• B. MAC Pinning-Physical-NIC-load
• C. LACP Passive
• D. MAC Pinning+
• E. LACP Active

Answer: D

NEW QUESTION 7
A situation causes a fault to be raised on the APIC. The ACI administrator does not want that fault to be raised because it is not directly relevant to the environment. Which action should the administrator take to prevent the fault from appearing?

• A. Under System -> Faults, right-click on the fault and select Acknowledge Fault so that acknowledged faults will immediately disappear.
• B. Create a stats threshold policy with both rising and falling thresholds defined so that the critical severity threshold matches the squelched threshold.
• C. Under System -> Faults, right-click on the fault and select Ignore Fault to create a fault severity assignment policy that hides the fault.
• D. Create a new global health score policy that ignores specific faults as identified by their unique fault code.

Answer: C

NEW QUESTION 8
In the context of ACI Multi-Site, when is the information of an endpoint (MAC/IP) that belongs to site 1 advertised to site 2 using the EVPN control plane?

• A. Endpoint information is not exchanged across sites unless COOP protocol is used.
• B. Endpoint information is not exchanged across sites unless a policy is configured to allow communication across sites.
• C. Endpoint information is exchanged across sites as soon as the endpoint is discovered in one site.
• D. Endpoint information is exchanged across sites when the endpoints are discovered in both sites.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739609.html#CiscoACIMultiSiteoverlaydataplane

NEW QUESTION 9
An engineer configured Layer 2 extension from the ACI fabric and changed the Layer 2 unknown unicast policy from Flood to Hardware Proxy. How does this change affect the flooding of the L2 unknown unicast traffic?

• A. It is forwarded to one of the spines to perform as a spine proxy.
• B. It is flooded within the whole fabric.
• C. It is dropped by the leaf when the destination endpoint is not present in the endpoint table.
• D. It is forwarded to one of the APICs to perform as a proxy.

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L2_config/b_Cisco_APIC_Layer_2_Configuration_Guide/b_Cisco_APIC_Layer_2_Configuration_Guide_chapter_010.html

NEW QUESTION 10
What are two requirements for the IPN network when implementing a Multi-Pod ACI fabric? (Choose two.)

• A. EIGRP routing
• B. PIM ASM multicast routing
• C. BGP routing
• D. VLAN ID 4
• E. OSPF routing

Answer: AE

NEW QUESTION 11
In the context of VMM, which protocol between ACI leaf and compute hosts ensures that the policies are pushed to the leaf switches for immediate and on demand resolution immediacy?

• A. VXLAN
• B. LLDP
• C. ISIS
• D. STP

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/ACI_Best_Practices/b_ACI_Best_Practices/b_ACI_Best_Practices_chapter_0101.html

NEW QUESTION 12
What represents the unique identifier of an ACI object?

• A. universal resource identifier (URI)
• B. application programming interface
• C. management information tree
• D. distinguished name

Answer: D

Explanation:
Reference: https://www.slideshare.net/CiscoDevNet/introduction-to-aci-apis

NEW QUESTION 13
Which description regarding the initial APIC cluster discovery process is true?

• A. The APIC uses an internal IP address from a pool to communicate with the nodes.
• B. Every switch is assigned a unique AV by the APIC.
• C. The APIC discovers the IP address of the other APIC controllers by using Cisco Discovery Protocol.
• D. The ACI fabric is discovered starting with the spine switches.

Answer: C

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010011.html

NEW QUESTION 14
How is an EPG extended outside of the ACI fabric?

• A. Create an external bridged network that is assigned to a leaf port.
• B. Create an external routed network that is assigned to an EPG.
• C. Enable unicast routing within an EPG.
• D. Statically assign a VLAN ID to a leaf port in an EPG.

Answer: D

Explanation:
Reference: https://www.dclessons.com/l2-external-network-with-aci

NEW QUESTION 15
Which attribute should be configured for each user to enable RADIUS for external authentication in Cisco ACI?

• A. cisco-security domain
• B. cisco-auth-features
• C. cisco-aci-role
• D. cisco-av-pair

Answer: D

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/Security_config/b_Cisco_APIC_Security_Configuration_Guide/b_Cisco_APIC_Security_Guide_chapter_01011.html

NEW QUESTION 16
Which action sets Layer 2 loop migration in an ACI Fabric with a Layer 2 Out configured?

• A. Enable MCP on the ACI fabric.
• B. Disable STP in the external network.
• C. Disable STP on the ACI fabric.
• D. Enable STP on the ACI fabric.

Answer: A

NEW QUESTION 17
What must be enabled in the bridge domain to have the endpoint table learn the IP addresses of endpoints?

• A. L2 unknown unicast: flood
• B. GARP based detection
• C. unicast routing
• D. subnet scope

Answer: C

Explanation:
Reference: https://hsvglobalschool.in/dhkycw/cisco-aci-bridge-domain.html

NEW QUESTION 18

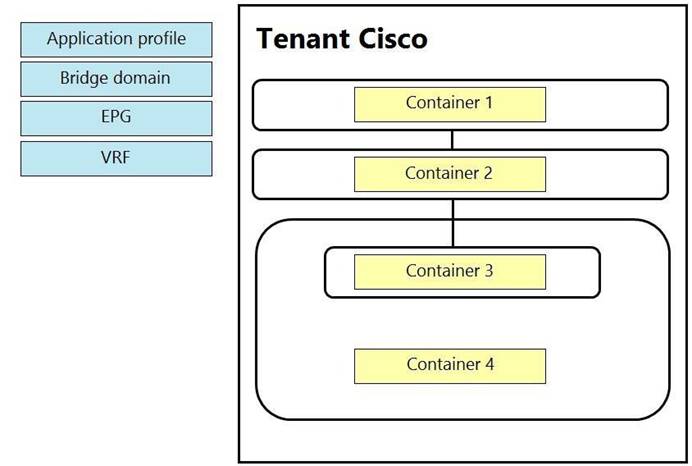

DRAG DROP

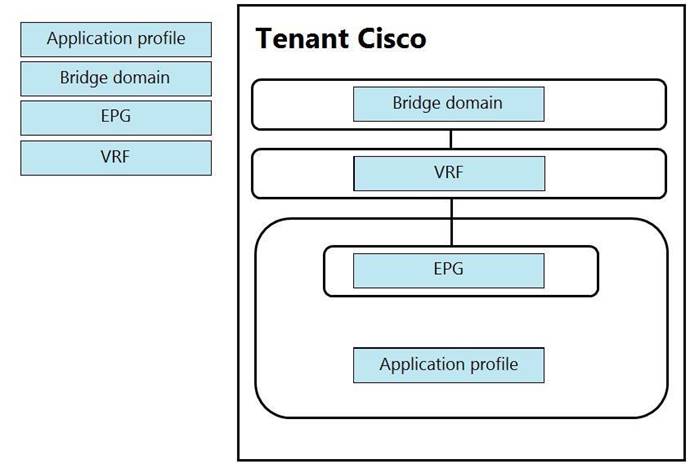

An engineer is configuring a VRF for a tenant named Cisco. Drag and drop the child objects on the left onto the correct containers on the right for this configuration.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 19

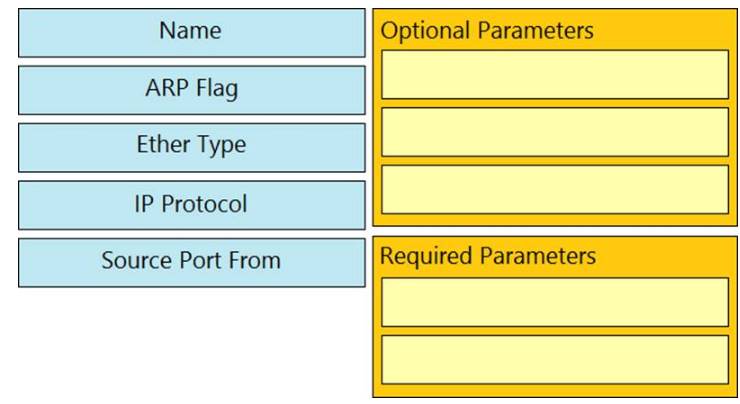

DRAG DROP
Drag and drop the Cisco ACI filter entry options from the left onto the correct categories on the right indicating what are required or optional parameters.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/Operating_ACI/guide/b_Cisco_Operating_ACI/b_Cisco_Operating_ACI_chapter_01000.html

NEW QUESTION 20
An engineer is implementing a connection that represents an external bridged network. Which two configurations are used? (Choose two.)

• A. Layer 2 remote fabric
• B. Layer 2 outside
• C. Layers 2 internal
• D. Static path binding
• E. VXLAN outside

Answer: AB

NEW QUESTION 21
Which table holds IP address, MAC address and VXLAN/VLAN information on a Cisco ACI leaf?

• A. endpoint
• B. adjacency
• C. RIB
• D. ARP

Answer: A

Explanation:
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739989.html

NEW QUESTION 22

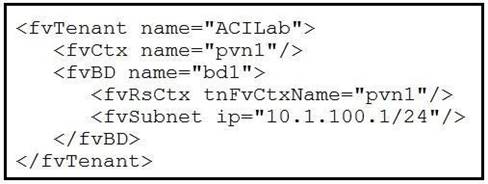

Refer to the exhibit.

Which two objects are created as a result of the configuration? (Choose two.)

• A. application profile
• B. attachable AEP
• C. bridge domain
• D. endpoint group
• E. VRF

Answer: CE

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/rest_cfg/2_1_x/b_Cisco_APIC_REST_API_Configuration_Guide/b_Cisco_APIC_REST_API_Configuration_Guide_chapter_01110.html

NEW QUESTION 23
What does a bridge domain represent?

• A. Layer 3 cloud
• B. Layer 2 forwarding construct
• C. tenant
• D. physical domain

Answer: B

Explanation:
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/L2_config/b_Cisco_APIC_Layer_2_Configuration_Guide/b_Cisco_APIC_Layer_2_Configuration_Guide_chapter_010.html
