NEW QUESTION 1
Which three functionalities does WebRTC provide? (Choose three.)

• A. NAT / Firewall Traversal
• B. adds click-to-call capabilities from a web application to an Avaya endpoint
• C. Internet-friendly codecs and Privacy
• D. real-time audio and video conferencing

Answer: ABD

Explanation:
* One of the primary differentiating features for the WebRTC Snap-in is that the web application handles authentication and authorization of calls. This includes the
capability to assert a calling user’s phone number and restrict the numbers that can be called.
* The Avaya SBCE enables secure firewall traversal for HTTP and SRTP packets, facilitates sending DTLS to provide secured key exchange for the SRTP flow,
and takes care of all security requirements mentioned in the TURN protocol for the solution.
* WebRTC can be a game changer for enterprise communications and customer engagement. Enterprises can now add real-time communications to any website.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 9
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 2
After the initial provisioning script has been run you see your Avaya Session Border Controller for
Enterprise (SBCE) displaying a Registered state in the Web GUI. You click on the install link in the EMS
System Management > Devices menu to continue the installation.
After displaying a status of Provisioning for a short while, which status does the SBCE display?

• A. Commissioned
• B. Up
• C. Busyout
• D. Maintenance-Busy

Answer: A

Explanation:

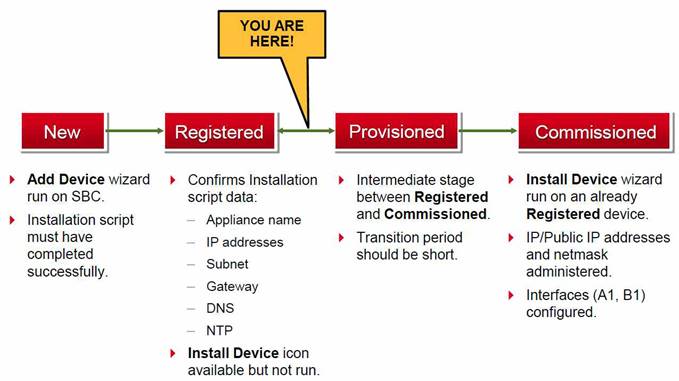

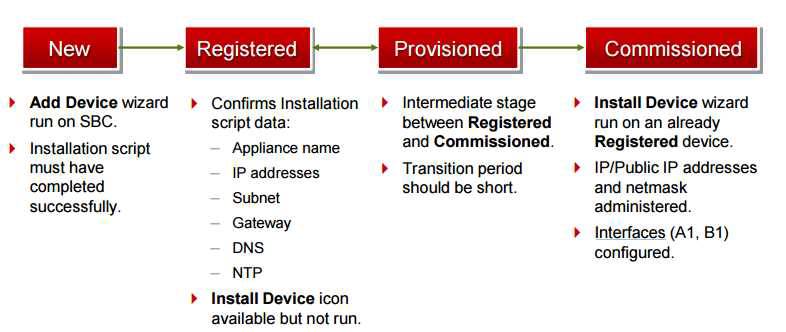

SBC states:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance
(2012), page 201

NEW QUESTION 3
In Avaya Session Border Controller for Enterprise (SBCE), what is the default state of an Interface?

• A. Deployed
• B. Enabled
• C. Disabled
• D. Active

Answer: C

Explanation:
Example:
Commission the SBC—SBC Configuration

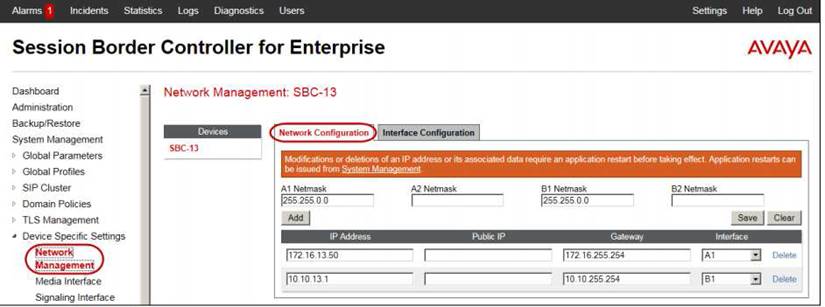

* 1. The A1 and B1 interfaces display on the Network Configuration tab.

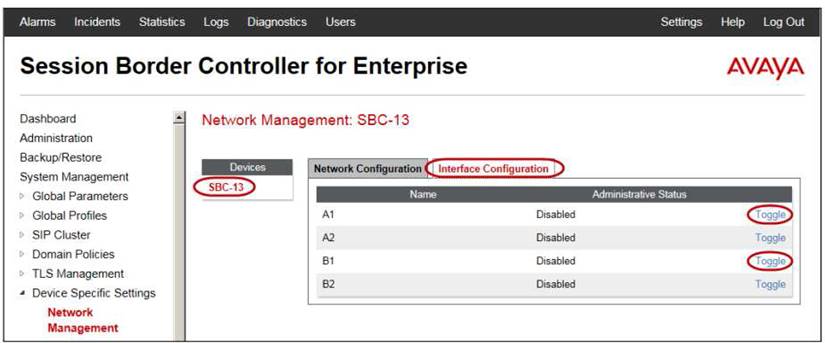

* 2. Click on the Interface Configuration tab:

* 3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled:
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 203

NEW QUESTION 4
The provisioning script automatically runs as part of the first boot-up of the Avaya Session Border
Controller for Enterprise (SBCE). During this process you assign the Management IP address to the
SBCE. You browse to the Element Management System (EMS) to continue to install the SBCE.
On the System Management > Devices web page, which status does the SBCE display before the
Install link is clicked?

• A. Ready
• B. Provisioned
• C. Registered
• D. Commissioned

Answer: C

Explanation:

References: Avaya Aura Session Border Controller Enterprise (2012), page 201

NEW QUESTION 5
Which two options describe the purpose of TraceSM in the Avaya Aura® Presence Services? (Choose two.)

• A. It captures Packet-Size statistics from every telephone call in Avaya Aura® 7.
• B. It captures real-time XMPP traffic.
• C. It captures Voice and Video Calls media packets in real-time.
• D. It captures live traces for both SIP and H323/XMPP clients.
• E. It captures Contact details from every user connected to Avaya Aura® Presence Services.

Answer: BD

Explanation:
It’s important to know that traceSM is a real-time capture tool.
traceSM is an interactive perl script that allows an administrator to capture, view, and save call processing
activity on a Session Manager. While not as powerful or versatile as wireshark, traceSM is absolutely essential when it comes to working with Avaya SIP. First off, it allows you to view SIP messages even if they have been encrypted with TLS.
References: https://andrewjprokop.wordpress.com/2014/06/02/a-necessary-guide-to-the-avaya-tracesm-utility/

NEW QUESTION 6
To log on the one-X® Communicator to Avaya Aura® Presence Services server, what do you enter in the IM and Presence / Server field of the one-X® Communicator?

• A. the management IP-Address of FQDN of Avaya Breeze™ server
• B. the management IP-Address of FQDN of Avaya Aura® Session Manager (SM)
• C. the SM100 IP-Address of FQDN of Avaya Aura® Session Manager (SM)
• D. the SM100 IP-Address or FQDN of Avaya Breeze™ server

Answer: C

Explanation:
The SIP one-X Communicator needs to be configured to use a specific protocol and port when registering to Session Manager.
Enter the IP address of the Session Manager virtual SM-100 card for Session Manager SIP Element.
References: Application Notes for Configuring Avaya AuraTM Presence
Services 6.0 with Avaya AuraTM Session Manager 6.0, and Avaya AuraTM Communication Manager for one-XTM Communicator clients as part of Avaya Unified
Communication Mobile Worker Solution – Issue 1.0, page 30
https://www.devconnectprogram.com/fileMedia/download/dba93412-03c6-4fda-8d6a-280ae2193d6f

NEW QUESTION 7
What identifies that the Avaya Breeze™ server is using Identity Certificates that have been signed by Avaya Aura® System Manager (SMGR)?

• A. if the Issuer Name states “O=AVAYA, OU=MGMT, CN= System Manager CA” for the Security Module SIP Identity Certificate
• B. if the replication status is showing ‘Synchronized’ with a green background color
• C. if a successfully installed WebRTC snap-in is used
• D. if the Entity Link between Avaya Aura® Session Manager (SM) and Avaya Breeze™ server is up

Answer: A

NEW QUESTION 8
When configuring a SIP Entity for Avaya Aura® Messaging (AAM) in Avaya Aura® System Manager, which Type of SIP entity needs to be selected?

• A. Messaging
• B. Avaya Aura® Messaging
• C. Communication Manager Messaging
• D. OtherCorrect

Answer: D

Explanation:
Define SIP Entity
Expand Elements, Routing and select SIP Entities from the left navigation menu.
Click New (not shown). In the General section, enter the following values and use default values for remaining fields.
* Name: Enter an identifier for the SIP Entity
* FQDN or IP Address: Enter IP address of Avaya Aura® Messaging.
* Type: Select “Other”
Etc.
References: Application Notes for Configuring Avaya Aura® Messaging 6.1 as a Voice Messaging Solution for Avaya Aura® Communication Manager 6.0.1 Feature
& Evolution Server Using SIP Trunks and Avaya Aura® Session Manager 6.1 – Issue 1.0 , page 22
https://www.devconnectprogram.com/fileMedia/download/08ad7375-7c2e-4767-929f-15f4e8130a0d

NEW QUESTION 9
After running the Install wizard on Avaya Session Border Controller for Enterprise (SBCE), you added a Public Outside IP address to the B1 interface. You try to ping this IP address from a PC in the same subnet but it falls.
What would you do first to resolve the issue?

• A. Restart Applications.
• B. Set the Default Gateway router IP address, navigate to the Interfaces and Enable the B1 Interface.
• C. Reboot SBCE.
• D. Navigate to Device Specific Settings > Network Management > Interfaces and Enable the B1 interface.

Answer: D

Explanation:
The interface might need to be enabled.
* 1. The A1 and B1 interfaces display on the Network Configuration tab.

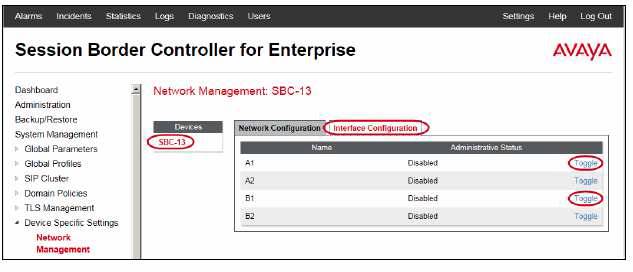

* 2. Click on the Interface Configuration tab.

* 3. Click the Toggle link for both the A1 and the B1 interfaces.
The Administrative Status for both A1 and B1 changes to Enabled
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 204

NEW QUESTION 10
To set Timers, URI Manipulation, and Header Manipulation that the Avaya Session Border Controller for Enterprise (SBCE) will use when signaling to the far-end server; a profile like “avaya-ru” is provided by default.
When configuring the Server Configuration, you must link to which type of Global profile?

• A. Signaling
• B. Routing
• C. Topology Hiding
• D. Server Interworking

Answer: D

Explanation:
The standard Avaya profile “avaya-ru” is cloned for the Call Server Interworking Profile.
The Interworking function of the Global Profiles feature enables the SBCE to function in an enterprise VoIP network using different SIP protocols.
References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 339

NEW QUESTION 11
In Avaya Aura® Messaging 6.3, which statement is true about Avaya Aura® Messaging (AAM) capacities of a system utilizing the Standard Capacity (non-High Capacity) Message Store template?

• A. One Message Store Server supports up to 60000 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
• B. One Message Store Server supports up to 6000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.
• C. One Message Store Server supports up to 600 user mailboxes and you can have 5 active + 1 Redundant Application Servers in a cluster.
• D. One Message Store Server supports up to 1000 user mailboxes and you can have 3 active + 1 Redundant Application Servers in a cluster.

Answer: B

Explanation:
Dedicated AxC/Directory server: A physical server that manages notification capabilities and the LDAP database and provides communications between application servers and the thirdparty storage server. This server also stores user properties and name and greeting recordings.
Not all configurations require a dedicated AxC/Directory server because the AxC/Directory role runs on the Avaya-provided message store. You only need a
dedicated AxC/Directory server for:
Release 6.2 and earlier Messaging systems with a third-party storage server.
Release 6.3 or later systems with more than one application server, or more than 6000 users using a third-party storage server, such as Microsoft Exchange.
References: Avaya Aura® Messaging Overview and Specification, Release 6.3.2 (January 2015) , page 20
https://downloads.avaya.com/css/P8/documents/101004642

NEW QUESTION 12
In Avaya Aura® System Manager, how is Avaya Aura® Messaging (AAM) added to the list of Managed Elements?

• A. It is added when you configure the AAM SIP Entity in SMGR.
• B. It is automatically added during the enrollment process.
• C. It can only be manually added.
• D. It is automatically added using initTM –f command on the Command Line Interface of AAM.

Answer: D

Explanation:
In System Manager, element installation sets up the trust between System Manager and its managed elements. . Similarly, UCM has a trust management process
to set up the trust between UCM and its managed elements. To enable managed elements of UCM to be in the same trust domain as the System Manager
managed elements, you must import the UCM Certificate Authority (CA) certificate to the System Manager managed element's trusted certificate list.
Note: To force a re-initialization of trust management
* 1. Ensure the enrollment password in the System Manager Security -> Enrollment Password screen is valid and set. Make note of this password as it will be needed
when running the trust management initialization command.
* 2. Log into the Session Manager virtual machine IP address with an ssh client as the craft or customer account login
* 3. Execute the following shell command once at the shell prompt:
$ initTM –f
This will prompt you for the enrollment password and then initialize trust management and the database replication service of the Session Manager.
References: Administering Avaya Aura System Manager for Release 6.3.11 and later, Release 6.3, Issue 8, November 2016, page 1073
https://downloads.avaya.com/css/P8/documents/101008185
https://downloads.avaya.com/css/P8/documents/100161692

NEW QUESTION 13
You are setting up the SIP connection between Avaya Aura® Messaging (AAM) and the Avaya Aura® Core, and the information you have entered for the Far-end connection is:
Far-end Connections = 1 Gateway ID = 1
IP address = 135.60.135.11 Transport = TLS
Port = 5061
What should you conclude from all this information?

• A. The connection cannot work because 5061 is not the Well-known port corresponding to TLS by standard.
• B. There will be conflicts in the TLS connections given that 5061 is a well-known port that other Endpoints and Servers use within the same network.
• C. A Security Certificate from the same Certificate Authority as the other Avaya Aura® components, must be installed on the AAM Server to guarantee successful TLS Connections.
• D. The IP address is wrong because its range does not correspond to a valid TLS-compatible IP address.

Answer: C

Explanation:
Incorrect Answers:
A: 5060 is typically used for TCP connection. 5061 for TLS.

NEW QUESTION 14
Which component converts WebRTC Media Stream to SIP Media Stream?

• A. HTTP Reverse Proxy
• B. Avaya Aura® Media Server (AAMS)
• C. STUN/TURN server
• D. G.450/430 or G.650 Medpro board

Answer: C

Explanation:
Provisioning Avaya Aura® Media Server for the WebRTC Snap-in.
Procedure
* 1. Log in to the Avaya Aura®
Media Server Element Manager.
* 2. Check that Avaya Aura®
Media Server nodes and routes are set up correctly.
See Deploying Avaya Breeze™ for details on configuring Avaya Aura®
Media Server forAvaya Breeze™.
* 3. Go to System Configuration > Server Profile > General Settings, enable Firewall NAT Tunneling Media Processor and then click Save.
* 4. Go to System Configuration > Signaling Protocols > SIP > General Settings, enable Always use SIP default outbound proxy, and then click Save.
Go to System Configuration > Media Processing > ICE > TURN/STUN Servers > Accounts and create a TURN/STUN account. This account ID and password must
match the account created on the Avaya SBCE.
* 6. Go to System Configuration > Media Processing > ICE > TURN/STUN Servers > Servers to add the TURN/STUN connection to the Avaya SBCE server
Etc.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 23
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 15
A customer reports that when using Presence services, the users cannot see the Presence status.
Which two tools are used to trace a PUBLISH message. In the Avaya Breeze™ server? (Choose two.)

• A. traceSBC
• B. traceCE
• C. traceSM
• D. tracePRS
• E. tracePS

Answer: CE

NEW QUESTION 16
In Avaya Session Border Controller for Enterprise (SBCE) 7.x, you need to download the 46xxsettings.txt file to a Remote Worker device.
What needs to be configured under DMZ Services > Relay Services?

• A. Application Relay and File Transfer
• B. Reverse Proxy
• C. Application Relay
• D. Application Relay and Reverse Proxy

Answer: C

Explanation:
Relay Services are used to define how file transfers (e.g., for phone firmware upgrades and configuration), are routed to the Remote Worker endpoints.
Example: 2 For accessing the file server using HTTPS protocol

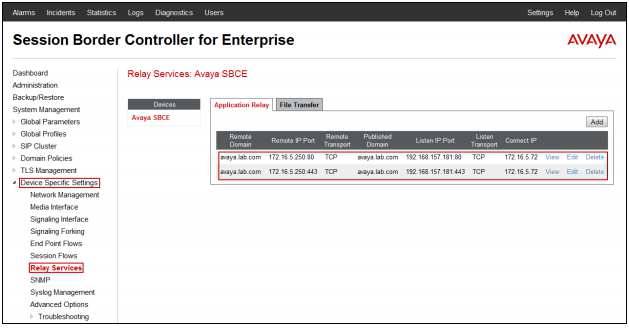

The following screenshot shows the newly created Relay Services

References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura Communication Manager Rel. 6.3 and Avaya Aura Session Managers Rel. 6.3 - Issue 1.0, page 73
https://downloads.avaya.com/css/P8/documents/100183254

NEW QUESTION 17
How many Server Flows and/or Subscriber Flows are required for SIP Trunking?

• A. one Subscriber Flow and two Server Flows
• B. a minimum of two Subscriber Flows
• C. one Subscriber Flow and one Server Flow
• D. a minimum of two Server Flows

Answer: A

Explanation:
Two types of flows need to be defined for the proper routing of SIP messages from and to the endpoints and the SIP server.
Server Flows – Routing destination sent by SIP server (Session Manager).
Subscriber Flows – Routing destination sent by SIP endpoints.

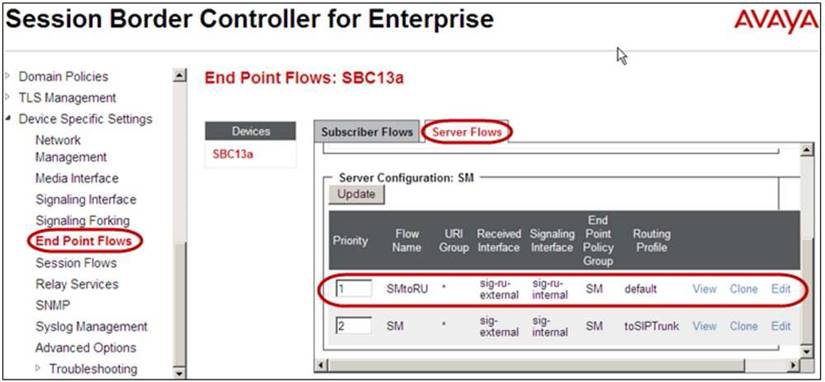

Example, Server Flows:

References: Avaya Aura Session Border Controller Enterprise Implementation and Maintenance (2012), page 540, 546

NEW QUESTION 18
The Avaya WebRTC solution uses the web intensively to make media calls from a standard web browser in the internet, into internal and secure communication premises in the enterprise.
Which statement about security between the Enterprise-edge and those standard Web browsers in the internet is true?

• A. A trust relationship based on certificates must be built to make WebRTC work.
• B. No trust relationship exists between enterprise edge security and web browsers; therefore, the security strategy is based on an Authorization Token instead.
• C. There must be a VPN connection between the Web Browser and the Enterprise-edge to build a WebRTC link.
• D. WebRTC only works within the Enterprise networ
• E. External Web Browsers must connect through an Avaya Session Border Controller for Enterprise (SBCE) via a SIP trunk.

Answer: B

Explanation:
Validation of the authorization token.
The WebRTC Snap-in will validate the authorization token created and encrypted by the web server. If the snap-in can decrypt the token and ensure that the time stamp is valid, it knows that the incoming HTTP request is valid. The time stamp will usually be short lived; on the order of 5-10seconds to protect against reply attacks.
References: Avaya WebRTC Snap-in Reference, Release 3.1 (May 2016), page 27
https://downloads.avaya.com/css/P8/documents/101013939

NEW QUESTION 19
Which access control method is used by the Avaya Aura® Application Enablement Services (AES) server for administrators?

• A. Single Administrator simple password login
• B. Challenge-Response shared-key method only
• C. System Manager AES Management Menu
• D. Role-Based Access Control

Answer: D

Explanation:
Role Based Access Control (RBAC)
Access to AE Services Management Console Web pages can be restricted by user authorization level. The operations that users are allowed to perform such as
read, edit and delete can also be restricted.
References: Avaya Aura Application Enablement Services Overview and Specification, Release 7.0.1, Issue 2 (June 2016), page 20
https://downloads.avaya.com/css/P8/documents/101014052

NEW QUESTION 20
Which Avaya Breeze™ Cluster type is the Avaya Aura® Presence Services snap-in installed on?

• A. Presence Services
• B. Core Platform
• C. General Purpose
• D. IM_Presence

Answer: B

Explanation:
Verifying that Presence Services snap-in is ready to support Presence and IM
Procedure
* 1. On the System Manager web console, navigate to Elements > Avaya Breeze> Cluster Administration.
* 2. Locate the row for the cluster, and verify that:
* The Cluster Profile field shows Core Platform.
etc.
References: Avaya Aura® Presence Services Snap-in Reference. Release 7.0.1 (December 2016), page 224
https://downloads.avaya.com/css/P8/documents/101013646

NEW QUESTION 21
Avaya Aura® Presence Services 7.x is implemented on Avaya Breeze™ (formerly Engagement Development Platform (EDP)).
When looking at Elements > Breeze > Service Management > Services, which status would you expect for a Presence Services snap-in that is ready to support Avaya Aura® Presence Services?

• A. Accepting
• B. Loaded
• C. Installed
• D. Active

Answer: A

NEW QUESTION 22
......
