All About Tested AX0-100 Vce

NEW QUESTION 1
If image clarity changes are made within the camera web interface, but are not reflected within a Video Management Software (VMS), what is the most likely cause of the camera not accepting the settings?

• A. The camera is faulty and needs to be replaced
• B. The VMS is overwriting the changes in the camera
• C. The camera's advanced settings need to be changed first
• D. The user does not have administrative rights to change the settings

Answer: B

NEW QUESTION 2
Which statement is true for broadcast network traffic?

• A. Broadcast is designed to enable optimized video transmission, since it tolerates network dropouts
• B. Broadcast is not practical for network video transmission, since packets are transmitted to every device on the network
• C. Broadcast is a method for sending video to many recipients over the internet even though their bandwidths vary
• D. Broadcast data packet length is longer than normal Ethernet packets, to accommodate a full video frame

Answer: B

NEW QUESTION 3
A customer has strict requirements of 30 fps for recorded video. Which encoder choice would they select if they wanted three streams, per every one encoded channel, of D1 resolution video run at 30 fps in H.264?

• A. AXISM7210
• B. AXISP7210
• C. AXISP7214
• D. AXISQ7406

Answer: D

NEW QUESTION 4
A camera can deliver up to two full resolution 30 fps H.264 streams. The customer wants to have four H.264 streams from the same camera. What will be the
resulting impact?

• A. The camera will lower the resolution
• B. The camera will lower the compression
• C. The camera will lower the frame rate
• D. The camera will lower the Group of Video (GOV) length

Answer: C

NEW QUESTION 5
Match the best choice of camera to each scenario described. Drag each gray box from the left column to the matching blue box in the right column.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 6
Increased noise levels in a scene will increase the

• A. Light sensitivity.
• B. Contrast level.
• C. Bandwidth usage.
• D. Brightness level.

Answer: C

NEW QUESTION 7
The term f-stop, or f-number,

• A. Relates the focal length of the lens to the zoom factor.
• B. Measures the lens' capability to focus on objects at short distance.
• C. Is the end position of the focus motor in an autofocus system.
• D. Measures the lens' capability to collect light.

Answer: D

NEW QUESTION 8
A convenience store needs a camera to cover the entrance. Identification is needed at 80 pixels per face. Given that the scene is 2 m (6 ft 7 in) wide, which of these resolutions is the minimum one needed?

• A. 640X480
• B. 800 X 600
• C. 1280 X 720
• D. 1920 X 1080

Answer: C

NEW QUESTION 9
The ONVIF standard gives the end user benefits such as (Choose two)

• A. Reduction of storage and network usage.
• B. Improving the performance of the system.
• C. Guarantees higher performance.
• D. Future proof systems and more secure investments.
• E. Increased flexibility and greater freedom of choice.

Answer: DE

NEW QUESTION 10
Which conditions would lead the system designer to choose a camera with good low light performance over a thermal camera? (Choose two)

• A. The camera is going in a primarily dark area, such as a subway or parking garage
• B. The camera is going to be placed inside looking out through a window
• C. The camera is going to be placed in a parking lot for facial identification
• D. The camera is going to employ trip line detection looking down a fence line
• E. The camera is going to be placed on a roof line looking down at an empty field

Answer: BC

NEW QUESTION 11
In a dark indoor environment one single Axis illuminator is available. At a distance of 1 m (3 ft 3 in) away from the illuminator the light intensity is 1024 lux. At what distance from the light source will the light intensity be 256 lux?

• A. 2 m (6 ft 7 in)
• B. 4m{13 ft 1 in)
• C. 8 m (26 ft 3 in)
• D. 16 m (52 ft 6 in)

Answer: A

NEW QUESTION 12
Who should be responsible for documenting a video surveillance installation?

• A. The camera manufacturer
• B. The customer's security manager
• C. The customer's IT department
• D. The integrator

Answer: D

NEW QUESTION 13
To get the best accuracy for a people counting application for customers entering a store, the camera should be mounted

• A. Facing the entrance.
• B. Facing the entrance at eye level.
• C. Directly above the entrance.
• D. Facing away from the entrance.

Answer: C

NEW QUESTION 14
While setting up an AXIS Q7404 Video Encoder for control of an analog PTZ using Pelco D protocol, you run into a problem. After uploading of the proper Pelco drivers into the AXIS Q7404 Video Encoder you find that channel 1 is controlling the wrong analog PTZ. Which option below would you adjust to fix this problem so you can avoid changing physical cables?

• A. IP address
• B. Device ID
• C. Baud rate
• D. Device type

Answer: B

NEW QUESTION 15

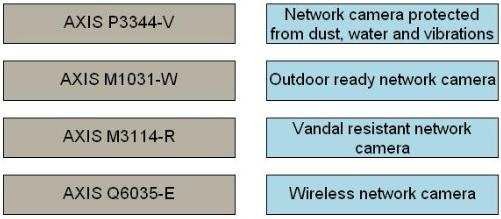

Match each product name with the right description. Drag each gray box from the left column to the matching blue box in the right column.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 16
Before upgrading firmware, which of the following should be checked?

• A. Verify that the Video Management Software (VMS) supports the latest firmware version
• B. Verify that both rack mounted and standalone servers support the latest firmware version
• C. Verify that the IEEE 802.3af compliant PoE switch supports the latest firmware version
• D. Verify that the SD card is properly ejected before the upgrade is started

Answer: A

NEW QUESTION 17
......
