NEW QUESTION 1

You have an Azure IoT solution that includes an Azure IoT hub.
You receive a root certification authority (CA) certificate from the security department at your company. You need to configure the IoT hub to use the root CA certificate.

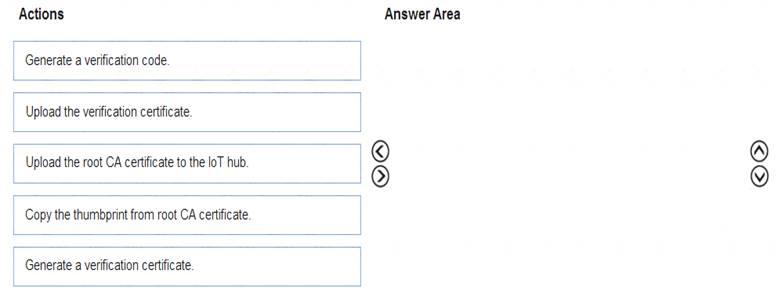

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-hub/iot-hub-security-x509-get-started

NEW QUESTION 2

You have 10 IoT devices that connect to an Azure IoT hub named Hub1.
From Azure Cloud Shell, you run az iot hub monitor-events --hub-name Hub1 and receive the following error message: "az iot hub: 'monitor-events' is not in the 'az iot hub' command group. See 'az iot hub
--help'."
You need to ensure that you can run the command successfully. What should you run first?

• A. az iot hub monitor-feedback --hub-name Hub1
• B. az iot hub generate-sas-token --hub-name Hub1
• C. az iot hub configuration list --hub-name Hub1
• D. az extension add -name azure-cli-iot-ext

Answer: D

Explanation:
Execute az extension add --name azure-cli-iot-ext once and try again.
In order to read the telemetry from your hub by CLI, you have to enable IoT Extension with the following commands:
Add: az extension add --name azure-cli-iot-ext Reference:
https://github.com/MicrosoftDocs/azure-docs/issues/20843

NEW QUESTION 3

You have an Azure IoT Central application.
You need to connect an IoT device to the application.
Which two settings do you require in IoT Central to configure the device? Each correct answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. Group SAS Primary Key
• B. the IoT hub name
• C. Scope ID
• D. Application Name
• E. Device ID

Answer: CE

Explanation:

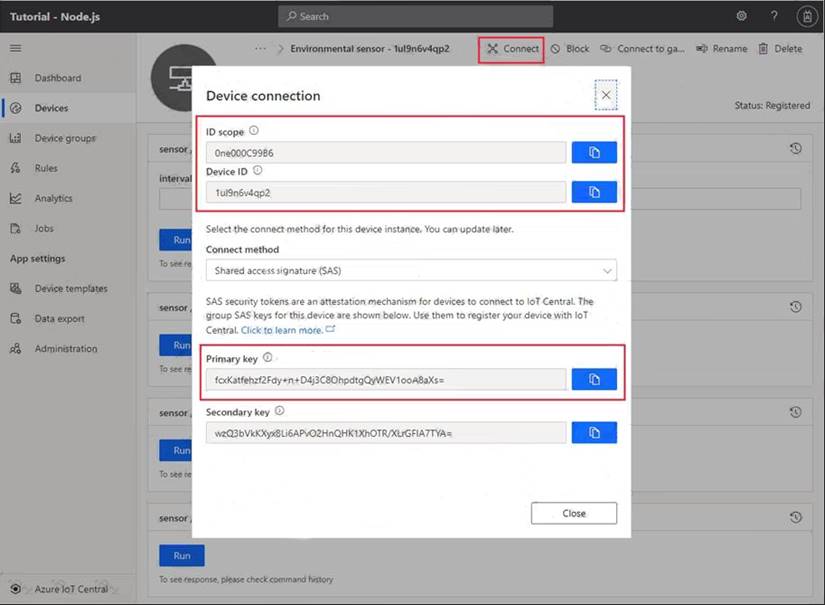

In your Azure IoT Central application, add a real device to the device template
*1. On the Devices page, select the Environmental sensor device template.
*2. Select + New.
*3. Make sure that Simulated is Off. Then select Create.
Click on the device name, and then select Connect. Make a note of the device connection information on the Device Connection page - ID scope, Device ID, and Primary key. You need these values when you create your device code:

Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/iot-central/core/tutorial-connect-device-python

NEW QUESTION 4

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have devices that connect to an Azure IoT hub. Each device has a fixed GPS location that includes latitude and longitude.
You discover that a device entry in the identity registry of the IoT hub is missing the GPS location.
You need to configure the GPS location for the device entry. The solution must prevent the changes from being propagated to the physical device.
Solution: You add the desired properties to the device twin. Does the solution meet the goal?

• A. Yes
• B. No

Answer: A

Explanation:
Device Twins are used to synchronize state between an IoT solution's cloud service and its devices. Each device's twin exposes a set of desired properties and reported properties. The cloud service populates the desired properties with values it wishes to send to the device. When a device connects it requests and/or subscribes for its desired properties and acts on them.
Reference:
https://azure.microsoft.com/sv-se/blog/deep-dive-into-azure-iot-hub-notifications-and-device-twin/

NEW QUESTION 5

Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.
After you answer a question in this question, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.
You have an Azure IoT solution that includes an Azure IoT hub, a Device Provisioning Service instance, and 1,000 connected IoT devices.
All the IoT devices are provisioned automatically by using one enrollment group. You need to temporarily disable the IoT devices from the connecting to the IoT hub.
Solution: From the IoT hub, you change the credentials for the shared access policy of the IoT devices. Does the solution meet the goal?

• A. Yes
• B. No

Answer: B

Explanation:
Reference:
https://docs.microsoft.com/bs-latn-ba/azure/iot-dps/how-to-unprovision-devices

NEW QUESTION 6

You have an instance of Azure Time Series Insights and an Azure IoT hub that receives streaming telemetry from IoT devices.
You need to configure Time Series Insights to receive telemetry from the devices.

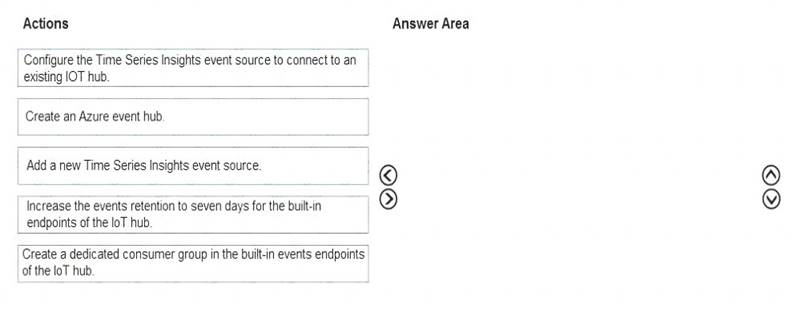

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Create a dedicated consumer group.. Add a consumer group to your IoT hub.
Applications use consumer groups to pull data from Azure IoT Hub. To reliably read data from your IoT hub, provide a dedicated consumer group that's used only by this Time Series Insights environment.
Step 2: Add a new Time Series Insights event source. Add a new event source
Sign in to the Azure portal.
In the left menu, select All resources. Select your Time Series Insights environment.
Under Settings, select Event Sources, and then select Add.
In the New event source pane, for Event source name, enter a name that's unique to this Time Series Insights environment. For example, enter event-stream.
Step 3: Configure the Time Series event source to connect to an existing IOT hub Step 4: For Source, select IoT Hub.
Step 5: Select a value for Import option:
If you already have an IoT hub in one of your subscriptions, select Use IoT Hub from available subscriptions. This option is the easiest approach.
Reference:
https://docs.microsoft.com/en-us/azure/time-series-insights/time-series-insights-how-to-add-an-event-source-iot

NEW QUESTION 7

You have 1,000 devices that connect to a standard tier Azure IoT hub.
All the devices are commissioned and send telemetry events to the built-in IoT Hub endpoint. You configure message enrichment on the events endpoint and set the enrichment value to $twin.tags.ipV4.
When you inspect messages on the events endpoint, you discover that all the messages are stamped with a string of "$twin.tags.ipV4".
What are two possible causes of the issue? Each Answer presents a complete solution. NOTE: Each correct selection is worth one point.

• A. The ipV4 tag is a restricted twin property that is unavailable for message enrichment.
• B. A standard tier IoT hub does not support device twin properties in message enrichments.
• C. The device sending the message has no device twin.
• D. Message enrichment cannot be added to messages going to a built-in endpoint.
• E. The device twin path used for the value of the enrichment does not exist.
• F. The device twin property value used for message enrichment is set to "$twin.tags.ipV4".

Answer: CE

Explanation:
In some cases, if you are applying an enrichment with a value set to a tag or property in the device twin, the value will be stamped as a string value. For example, if an enrichment value is set to $twin.tags.field, the messages will be stamped with the string "$twin.tags.field" rather than the value of that field from the twin.
This happens in the following cases:
(C) Your IoT Hub is in the standard tier, but the device sending the message has no device twin.
(E) Your IoT Hub is in the standard tier, but the device twin path used for the value of the enrichment does not exist. For example, if the enrichment value is set to $twin.tags.location, and the device twin does not have a location property under tags, the message is stamped with the string "$twin.tags.location".
Your IoT Hub is in the basic tier. Basic tier IoT hubs do not support device twins. Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-message-enrichments-overview

NEW QUESTION 8

You plan to deploy a standard tier Azure IoT hub.
You need to perform an over-the-air (OTA) update on devices that will connect to the IoT hub by using scheduled jobs.
What should you use?

• A. a device-to-cloud message
• B. the device twin reported properties
• C. a cloud-to-device message
• D. a direct method

Answer: D

Explanation:
Releases via the REST API.
All of the operations that can be performed from the Console can also be automated using the REST API. You might do this to automate your build and release process, for example.
You can build firmware using the Particle CLI or directly using the compile source code API.
Note: Over-the-air (OTA) firmware updates are a vital component of any IoT system. Over-the-air firmware updates refers to the practice of remotely updating the code on an embedded device.
Reference:
https://docs.particle.io/tutorials/device-cloud/ota-updates/

NEW QUESTION 9

You have an Azure IoT hub.

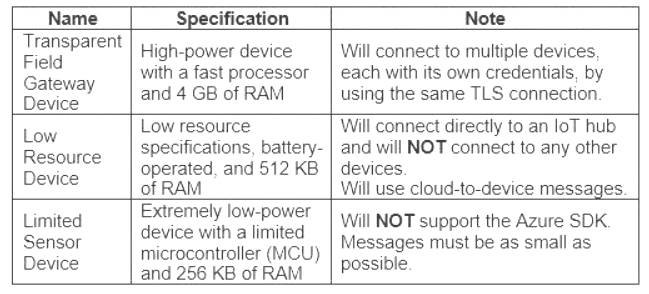

You plan to attach three types of IoT devices as shown in the following table.

You need to select the appropriate communication protocol for each device.

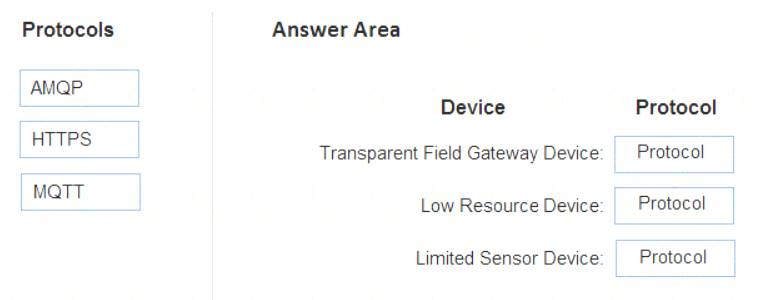

What should you select? To answer, drag the appropriate protocols to the correct devices. Each protocol may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: AMQP
Use AMQP on field and cloud gateways to take advantage of connection multiplexing across devices. Box 2: MQTT
MQTT is used on all devices that do not require to connect multiple devices (each with its own per-device credentials) over the same TLS connection.
Box 3: HTTPS
Use HTTPS for devices that cannot support other protocols.
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-devguide-protocols

NEW QUESTION 10

You have an Azure IoT solution that includes a standard tier Azure IoT hub and an IoT device. The device sends one 100-KB device-to-cloud message every hour.
You need to calculate the total daily message consumption of the device. What is the total daily message consumption of the device?

• A. 24
• B. 600
• C. 2,400
• D. 4,800

Answer: B

Explanation:
\100 KB * 24 is around 2,400 bytes.
The 100 KB message is divided into 4 KB blocks, and it is billed for 25 messages. 25 times 24 is 600
Note: The maximum message size for messages sent from a device to the cloud is 256 KB. These messages are metered in 4 KB blocks for the paid tiers so for instance if the device sends a 16 KB message via the paid tiers it will be billed as 4 messages.
Reference:
https://azure.microsoft.com/en-us/pricing/details/iot-hub/

NEW QUESTION 11

You have an Azure IoT Edge device.
You need to modify the credentials used to access the container registry. What should you modify?

• A. the @edgeHub module twin
• B. the IoT Edge module
• C. the $edgeAgent module twin
• D. the Azure IoT Hub device twin

Answer: C

Explanation:
The module twin for the IoT Edge agent is called $edgeAgent and coordinates the communications between the IoT Edge agent running on a device and IoT Hub. The desired properties are set when applying a deployment manifest on a specific device as part of a single-device or at-scale deployment.
These properties include: runtime.settings.registryCredentials.{registryId}.username runtime.settings.registryCredentials.registryId}.password
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-edgeagent-edgehub

NEW QUESTION 12

You have an Azure IoT hub.
You plan to deploy 1,000 IoT devices by using automatic device management. The device twin is shown below.
You need to configure automatic device management for the deployment.

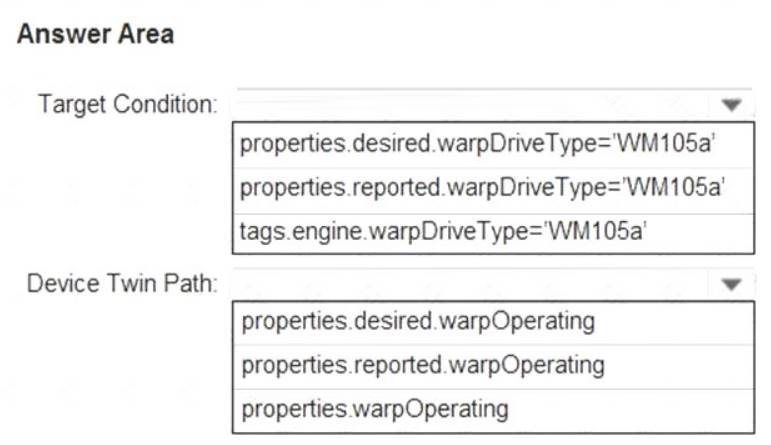

Which target Condition and Device Twin Path should you use? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: tags.engine.warpDriveType='VM105a'
Use tags to target twins. Before you create a configuration, you must specify which devices or modules you want to affect. Azure IoT Hub identifies devices and using tags in the device twin, and identifies modules using tags in the module twin.
Box 2: properties.desired.warpOperating
The twin path, which is the path to the JSON section within the twin desired properties that will be set. For example, you could set the twin path to properties.desired.chiller-water and then provide the following
JSON content:
{
"temperature": 66,
"pressure": 28
}
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-automatic-device-management

NEW QUESTION 13

You have an existing Azure IoT hub.
You need to connect physical IoT devices to the IoT hub.
You are connecting the devices through a firewall that allows only port 443 and port 80.
Which three communication protocols can you use? Each correct answer presents a complete solution. NOTE: Each correct selection is worth one point.

• A. MQTT over WebSocket
• B. AMQP
• C. AMQP over WebSocket
• D. MQTT
• E. HTTPS

Answer: ACE

Explanation:
MQTT over WebSockets, AMQP over WebSocket, and HTTPS use port 443. Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-devguide-protocols

NEW QUESTION 14

You develop a custom Azure IoT Edge module named temperature-module.
You publish temperature-module to a private container registry named mycr.azurecr.io
You need to build a deployment manifest for the IoT Edge device that will run temperature-module. Which three container images should you define in the manifest? Each correct answer presents part of the
solution.
NOTE: Each correct selection is worth one point.

• A. mcr.microsoft.com/azureiotedge-simulated-temperature-sensor:1.0
• B. mcr.microsoft.com/azureiotedge-agent:1.0
• C. mcr.microsoft.com/iotedgedev:2.0
• D. mycr.azurecr.io/temperature-module:latest
• E. mcr.microsoft.com/azureiotedge-hub:1.0

Answer: BDE

Explanation:
Each IoT Edge device runs at least two modules: $edgeAgent and $edgeHub, which are part of the IoT Edge runtime. IoT Edge device can run multiple additional modules for any number of processes. Use a deployment manifest to tell your device which modules to install and how to configure them to work together.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-composition

NEW QUESTION 15

You have an Azure IoT hub that is being taken from prototype to production.
You plan to connect IoT devices to the IoT hub. The devices have hardware security modules (HSMs). You need to use the most secure authentication method between the devices and the IoT hub. Company
policy prohibits the use of internally generated certificates. Which authentication method should you use?

• A. an X.509 self-signed certificate
• B. a certificate thumbprint
• C. a symmetric key
• D. An X.509 certificate signed by a root certification authority (CA).

Answer: D

Explanation:
Purchase X.509 certificates from a root certificate authority (CA). This method is recommended for production environments.
The hardware security module, or HSM, is used for secure, hardware-based storage of device secrets, and is the most secure form of secret storage. Both X.509 certificates and SAS tokens can be stored in the HSM
Reference:
https://docs.microsoft.com/en-us/azure/iot-dps/concepts-security

NEW QUESTION 16

You have 100 devices that connect to an Azure IoT hub.
You plan to use Azure functions to process all the telemetry messages from the devices before storing the messages.
You need to configure the functions binding for the IoT hub.
Which two configuration details should you use to configure the binding? Each Answer presents part of the solution.
NOTE: Each correct selection is worth one point.

• A. the name of the resource group that contains the IoT hub
• B. the IoT hub's connection string shared access key that has Service connect permissions
• C. the connection string of the Azure Event Hub-compatible endpoint from the IoT Hub built-in endpoints
• D. the Azure Event-Hub compatible name

Answer: CD

Explanation:
EventHubName: Functions 2.x and higher. The name of the event hub. When the event hub name is also present in the connection string, that value overrides this property at runtime.
Connection: The name of an app setting that contains the connection string to the event hub's namespace. Copy this connection string by clicking the Connection Information button for the namespace, not the event hub itself. This connection string must have send permissions to send the message to the event stream.
Reference:
https://docs.microsoft.com/en-us/azure/azure-functions/functions-bindings-event-iot-output

NEW QUESTION 17

What should you do to identify the cause of the connectivity issues?

• A. Send cloud-to-device messages to the IoT devices.
• B. Use the heartbeat pattern to send messages from the IoT devices to iothub1.
• C. Monitor the connection status of the device twin by using an Azure function.
• D. Enable the collection of the Connections diagnostics logs and set up alerts for the connected devices count metric.

Answer: D

Explanation:
Scenario: You discover connectivity issues between the IoT gateway devices and iothub1, which cause IoT devices to lose connectivity and messages.
To log device connection events and errors, turn on diagnostics for IoT Hub. We recommend turning on these logs as early as possible, because if diagnostic logs aren't enabled, when device disconnects occur, you won't have any information to troubleshoot the problem with.
Step 1:
*1.Sign in to the Azure portal.
*2.Browse to your IoT hub.
*3.Select Diagnostics settings.
*4.Select Turn on diagnostics.
*5. Enable Connections logs to be collected.
*6. For easier analysis, turn on Send to Log Analytics (see pricing).
Step 2:
Set up alerts for device disconnect at scale
To get alerts when devices disconnect, configure alerts on the Connected devices (preview) metric. Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/iot-hub/iot-hub-troubleshoot-connectivity

NEW QUESTION 18

You have an Azure IoT hub.
You need to recommend a solution to scale the IoT hub automatically. What should you include in the recommendation?

• A. Create an SMS alert in IoT Hub for the Total number of messages used metric.
• B. Create an Azure function that retrieves the quota metrics of the IoT hub.
• C. Configure autoscaling in Azure Monitor.
• D. Emit custom metrics from the IoT device code and create an Azure Automation runbook alert.

Answer: B

Explanation:
Note: IoT Hub is scaled and priced based on an allowed number of messages per day across all devices connected to that IoT Hub. If you exceed the allowed message threshold for your chosen tier and number of units, IoT Hub will begin rejecting new messages. To date, there is no built-in mechanism for automatically scaling an IoT Hub to the next level of capacity if you approach or exceed that threshold.
Reference:
https://docs.microsoft.com/en-us/samples/azure-samples/iot-hub-dotnet-autoscale/iot-hub-dotnet-autoscale/

NEW QUESTION 19

You need to use message enrichment to add additional device information to messages sent from the IoT gateway devices when the reported temperature exceeds a critical threshold.

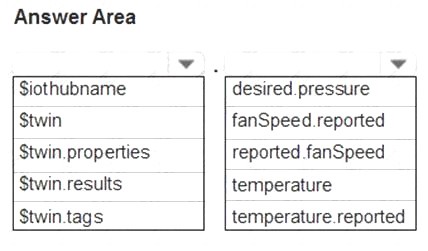

How should you configure the enrich message values? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Reference:
https://docs.microsoft.com/bs-cyrl-ba/azure/iot-hub/iot-hub-message-enrichments-overview

NEW QUESTION 20
......
