NEW QUESTION 1
Refer to the exhibit.

NAT has been configured on the router 'GW' and the IP addresses of router 'GW' have been configured properly. Users of PC1 and PC2 are able to ping the IP address 198.51.100.1 but are unable to reach any other IP addresses on the Internet. The ISP confirmed that their configuration is correct. Which option would likely correct the problem?

• A. ip access-list extended ACL_OUTBOUND permit ip 10.1.1.0 0.0.0.255 anyinterface Ethernet1ip access-group ACL_OUTBOUND out
• B. interface Ethernet1 ip nat outside
• C. interface Ethernet0 ip nat inside
• D. ip route 0.0.0.0 0.0.0.0 198.51.100.1

Answer: D

NEW QUESTION 2
To ensure ProfiNET Layer 2 Class-of-Service markings from ProfiNET devices are trusted by the switch, which command must be entered on the interface attached to the device?

• A. switch(config-if)#mls qos trust cos
• B. switch(config-if)#qos trust cos
• C. switch(config-if)#profinet cos trust
• D. switch(config-if)#trust qos cos

Answer: A

NEW QUESTION 3
EtherNet/IP is an Ethernet implementation of which protocol?

• A. CIP
• B. Industrial Protocol
• C. DeviceNet
• D. ControlNet

Answer: A

NEW QUESTION 4
What are two benefits of a star network topology? (Choose two.)

• A. Disruption of the entire network is not required when adding new machines.
• B. Any problem which leaves the network inoperable can be traced to the central hub.
• C. This network type requires less cable as compared to linear bus topology.
• D. The performance of one of the numerous nodes cannot reflect on the performance of other nodes.
• E. The performance of the entire network is directly dependent on the performance of the hub.

Answer: AB

NEW QUESTION 5
A small manufacturing company has a Class C network address on the plant floor and needs to create five subnets, each accommodating 25 endpoints. Which subnet mask needs to be configured?

• A. 255.255.240.0
• B. 255.255.255.128
• C. 255.255.255.192
• D. 255.255.255.224
• E. 255.255.255.240
• F. 255.255.255.248

Answer: D

NEW QUESTION 6
Which best describes the difference between 802.11n and 802.11ac?

• A. 802.11ac offers more channels over more bands than 802.11n
• B. 802.11ac MCS 1 is about twice as fast as 802.11n MCS1
• C. 802.11ac offers more modulation schemes than 802.11n
• D. 802.11ac 1SS MCS 9 is allowed over a 20, 40, 80 and 160 MHz channel, while 802.11n 1SS MCS 9 is only allowed over a 20 or 40 MHz channel.

Answer: C

NEW QUESTION 7
Which three network mechanisms can be used for securely segmenting an industrial network? (Choose three)

• A. VLANs
• B. OSPF
• C. REP
• D. VRFs
• E. Firewalls
• F. Spanning-tree

Answer: ADE

NEW QUESTION 8
You have reached the limit of IPv4 IGMP groups available on a Cisco IE 3000 switch that
was deployed using the Express Setup. Which CLI command will increase the number of available IPv4 IGMP groups and multicast routes from 256 to 1000 on this switch?

• A. switch(config)#sdm prefer routing
• B. switch(config)#sdm prefer vlan igmp
• C. switch(config)#sdm prefer routing igmp
• D. switch(config)#sdm prefer vlan

Answer: A

NEW QUESTION 9
What percentage of an I/O connection would you set the RPI in order to ensure the application has the most current data?

• A. RPI at 50% of IO rate
• B. RPI at 25% of IO rate
• C. PI to 25% of PAC scan rate
• D. Set RPI to 50% of PAC scan rate

Answer: A

NEW QUESTION 10

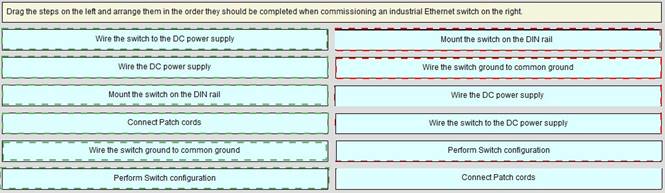

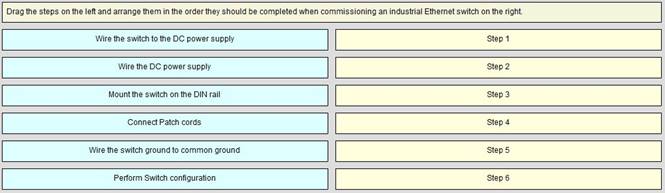

DRAG DROP

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 11
Which three of the following components must be elected before the Spanning Tree Protocol can converge in a switched LAN? (Choose three.)

• A. designated ports
• B. duplex operating mode
• C. fast mode ports
• D. root bridge
• E. root ports
• F. BDPU priority

Answer: ADE

NEW QUESTION 12

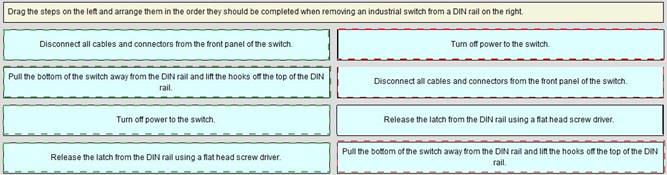

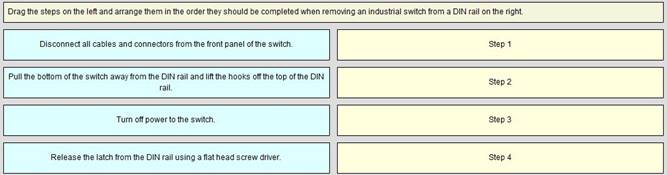

DRAG DROP

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 13
Which of the following correctly pairs the dotted decimal subnet mask with the correct number of binary bits that represent the subnet mask?

• A. 255.255.255.192 and /25
• B. 255.255.255.248 and /28
• C. 255.255.255.224 and /26
• D. 255.255.255.248 and /27
• E. 255.255.255.240 and /28
• F. 255.255.255.240 and /16

Answer: E

NEW QUESTION 14
Refer to the exhibit.

Which three options are needed to configure NAT on router GW so PC1 and PC2 will be able to ping 203.0.113.1? (Choose three)

• A. interface Ethernet0 ip nat insideinterface Ethernet1 ip nat outside
• B. ip access-list standard ACL_NAT permit 10.1.1.0 0.0.0.255
• C. ip nat inside source static tcp 10.1.1.0 80 interface Ethernet1 80
• D. interface Ethernet0 ip nat outside interface Ethernet1 ip nat inside
• E. ip nat inside source list ACL_NAT interface Ethernet1 overload
• F. ip access-list extended ACL_NAT permit tcp 10.1.1.0 0.0.0.255 any eq 80

Answer: ABE

NEW QUESTION 15
Which prompt is used to configure parameters for the Ethernet ports of an industrial switch?

• A. Switch(config-if)#
• B. Switch(config-if-ind)#
• C. Switch(config-line)#
• D. Switch(config-ind)#
• E. Switch(config-vlan)#

Answer: A

NEW QUESTION 16
Refer to the exhibit. The Robot Cell is in a bottling plant. This cell environment needs to consider high flex, EMI, and possible exposure to moisture. Which physical media components need to be considered to prevent network degradation or interruptions?

• A. Stranded, shielded wire with an industrial jacket and M12 connectors
• B. Solid, unshielded commercial jacket wire, and M12 connectors
• C. Stranded, unshielded wire with an industrial jacket, and commercial grade RJ45 connectors
• D. Solid, shielded wire with commercial grade jacket, and commercial grade RJ45 connectors

Answer: A

NEW QUESTION 17
Which option best describes the ProfiNET Discovery and Configuration Protocol (DCP)?

• A. Can be used to override both static and dynamically (DHCP/BOOTP) assigned IP addresses
• B. Cannot be used to reset a device to factory defaults
• C. Is only supported in Conformance Class B and C devices
• D. Uses the ProfiNET-IRT communication class

Answer: A

NEW QUESTION 18
ProfiNET has been disabled on a Cisco Industrial Ethernet switch. Which CLI command will correctly enable ProfiNET on the switch?

• A. switch(config)#profinet
• B. switch(config-if)#switchport profinet vlan 10
• C. switch(config)#vlan 10 profinet
• D. switch#enable profinet

Answer: A

NEW QUESTION 19
Which five are characteristics that describe Cisco Industrial switches? (Choose five)

• A. Din rail mount
• B. 19 inch rack mount
• C. Fanless
• D. Fans
• E. Swappable SD flash card
• F. Alarm relay
• G. -5ºC to 45ºC operating environment
• H. ProfiNET conformance class C compliance

Answer: ABCEF

NEW QUESTION 20

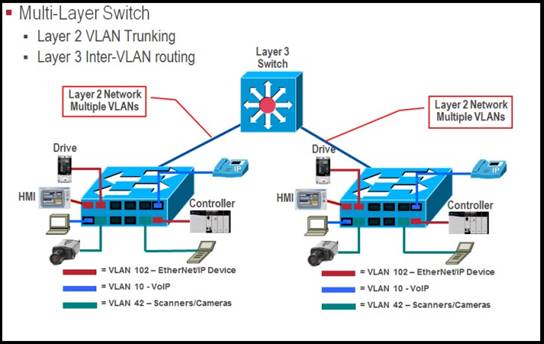

Refer to the exhbit. Which three elements would enable high availability and predictable performance for a motion control application spread across two switches (with video and I/O traffic)? (Choose three)

• A. Configure QoS to give PTP traffic the highest priority
• B. Fiber optic uplinks
• C. Redundant uplinks
• D. Configure QoS to give I/O traffic the highest priority
• E. Copper uplinks
• F. Interconnect the two switches

Answer: ABC

NEW QUESTION 21

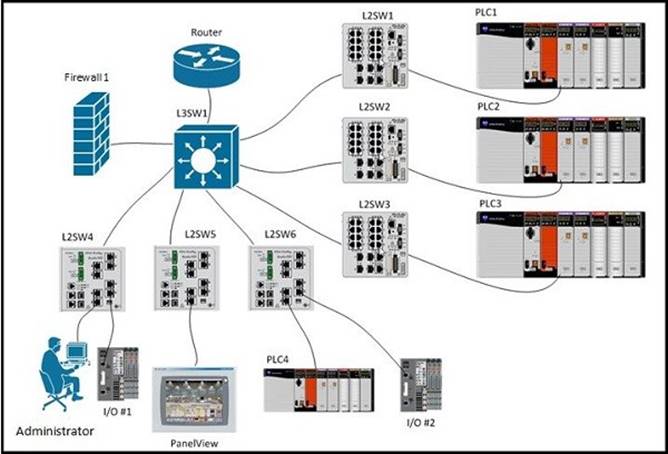

Refer to the exhibit.

A new device, PanelView, has been added to the network. See the table for device details:
All devices are able to ping their default gateway and all other devices except PanelView. PanelView can only ping its default gateway.
After the administrator has done some investigation they have discovered the following information:
L3SW1# show run interface
interface Vlan1 no ip address shutdown
!
interface Vlan191
ip address 10.10.27.125 255.255.255.192
ip helper-address 165.28.96.96
ip helper-address 165.28.32.235 no ip redirects
standby 191 ip 10.10.27.126
standby 191 priority 120
standby 191 preempt delay minimum 90 no ip route-cache
!
interface Vlan398
ip vrf forwarding mosaic
ip address 10.15.153.203 255.255.255.0
ip helper-address 10.15.154.252
ip helper-address 10.1.0.252
standby 98 ip 10.15.153.202
standby 98 priority 120
standby 98 preempt delay minimum 90
!
interface Vlan399
ip vrf forwarding mosaic
ip address 10.15.154.203 255.255.255.0
ip helper-address 10.1.0.252
ip helper-address 10.1.1.252
standby 99 ip 10.15.154.254
standby 99 priority 120
standby 99 preempt delay minimum 90
!
L3SW1# show ip route connected
10.0.0.0/8 is variably subnetted, 1149 subnets, 17 masks C 10.10.27.64/26 is directly connected, Vlan191
C 10.10.31.254/32 is directly connected, Loopback1
What is preventing PanelView from pinging the other endpoints in the network?

• A. Routing isn't enabled on L3SW1 for SVI 398 and SVI 399
• B. SVI 191 is in a different routing instance than SVI 398 and SVI 399
• C. Firewall1 is blocking pings from PanelView to the other endpoints
• D. An access list on L3SW1 is blocking pings from PanelView to the other endpoints

Answer: B

NEW QUESTION 22
Exhibit:

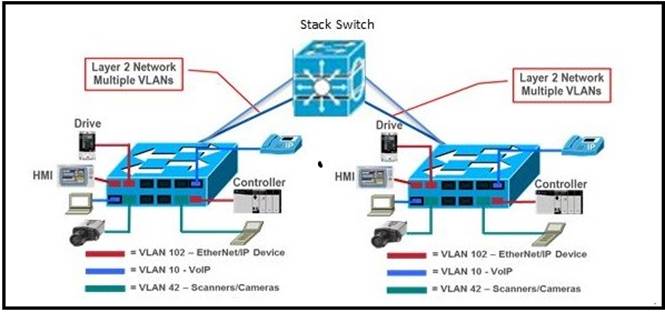

Refer to the exhibit. What are three traffic and interconnection requirements for the devices in the exhibit? (Choose three.)

• A. The EtherNet/IP drive connections are in a high-voltage area and need protection from electromagnetic noise, so shielded cable that is rated for 600 V is advised.
• B. EtherNet/IP devices such as the controller, drive, VoIP phone, and IP camera should be in the same VLAN.
• C. CIP traffic has the highest bandwidth requirement so it needs the highest QoS setting.
• D. EtherNet/IP drive traffic has high sensitivity to random drops, latency, and jitter.
• E. Real-time motion control and VoIP traffic can share the same VLAN with the proper QoS setting.
• F. IEEE1588 and PTP are important for ensuring real-time synchronization.

Answer: ADF

NEW QUESTION 23
What is the purpose of Spanning Tree Protocol?

• A. to prevent routing loops
• B. to create a default route
• C. to provide multiple gateways for hosts
• D. to maintain a loop-free Layer 2 network topology
• E. to enhance the functions of SNMP

Answer: D

NEW QUESTION 24
Exhibit:

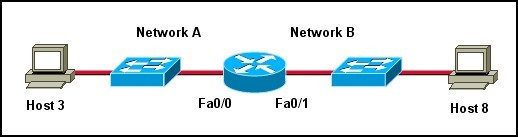

Refer to the exhibit. Host 3 on Network A is sending data to Host 8 on Network B. Which address is the default gateway of Host 3?

• A. the address of the switch interface that is connected to router interface Fa0/0
• B. the address of the switch interface that is connected to router interface Fa0/1
• C. the address of the host that is connected to Network A
• D. the address of the host that is connected to Network B
• E. the address of the router interface Fa0/0
• F. the address of the router interface Fa0/1

Answer: E
