NEW QUESTION 1
DRAG DROP
Your company has an Azure Active Directory (Azure AD) tenant named contoso.com.
The company is developing an application named App1. App1 will run as a service on server that runs Windows Server 2021. App1 will authenticate to contoso.com and access Microsoft Graph to read directory data.
You need to delegate the minimum required permissions to App1.

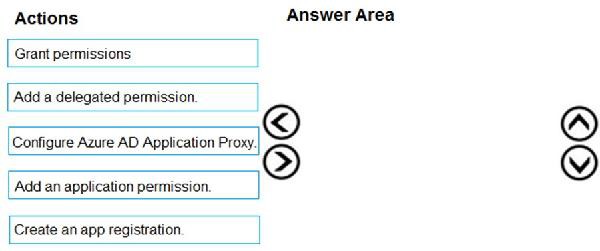

Which three actions should you perform in sequence from the Azure portal? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Create an app registration
First the application must be created/registered.
Step 2: Add an application permission
Application permissions are used by apps that run without a signed-in user present.
Step 3: Grant permissions
Incorrect Answers: Delegated permission
Delegated permissions are used by apps that have a signed-in user present.
Application Proxy:
Azure Active Directory's Application Proxy provides secure remote access to on-premises web applications.
References:
https://docs.microsoft.com/en-us/azure/active-directory/develop/v2-permissions-and-consent

NEW QUESTION 2
You have an Azure subscription named Sub1 that is associated to an Azure Active Directory (Azure AD) tenant named contoso.com.
You are assigned the Global administrator role for the tenant. You are responsible for managing Azure Security Center settings. You need to create a custom sensitivity label.
What should you do first?

• A. Create a custom sensitive information type.
• B. Elevate access for global administrators in Azure AD.
• C. Upgrade the pricing tier of the Security Center to Standard.
• D. Enable integration with Microsoft Cloud App Security.

Answer: A

Explanation:
First, you need to create a new sensitive information type because you can't directly modify the default rules.
References:
https://docs.microsoft.com/en-us/office365/securitycompliance/customize-a-built-in-sensitive-information-type

NEW QUESTION 3
DRAG DROP
You need to configure SQLDB1 to meet the data and application requirements.

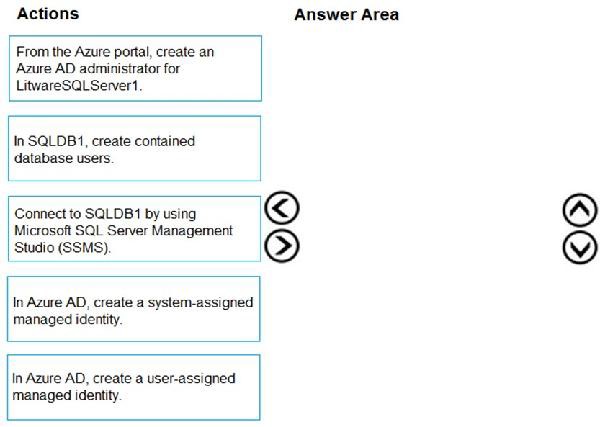

Which three actions should you recommend be performed in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Connect to SQLDB1 by using Microsoft SQL Server Management Studio (SSMS)
Step 2: In SQLDB1, create contained database users.
Create a contained user in the database that represents the VM's system-assigned identity.
Step 3: In Azure AD,create a system-assigned managed identity.
A system-assigned identity for a Windows virtual machine (VM) can be used to access an Azure SQL server. Managed Service Identities are automatically managed by Azure and enable you to authenticate to services that support Azure AD authentication, without needing to insert credentials into your code.
References:
https://docs.microsoft.com/en-us/azure/active-directory/managed-identities-azure-resources/tutorial-windows-vm-access-sql
Question Set 2

NEW QUESTION 4
HOTSPOT
You need to create Role1 to meet the platform protection requirements.

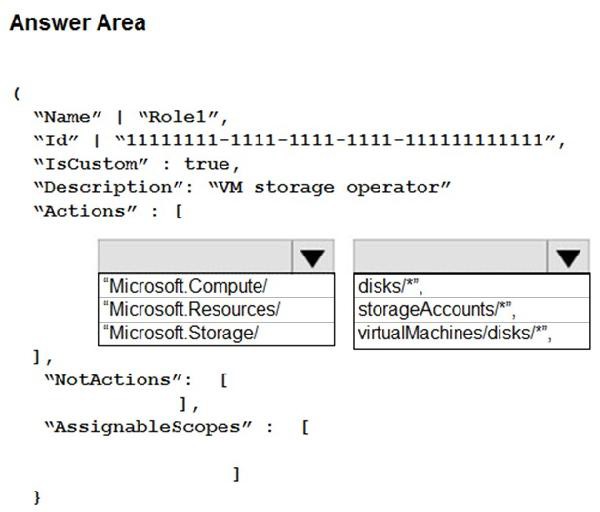

How should you complete the role definition of Role1? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Scenario: A new custom RBAC role named Role1 must be used to delegate the administration of the managed disks in Resource Group1. Role1 must be available only for Resource Group1.
Azure RBAC template managed disks "Microsoft.Storage/" References:
https://blogs.msdn.microsoft.com/azureedu/2021/02/11/new-managed-disk-storage-option-for-your-azure-vms/

NEW QUESTION 5
Your company has an Azure subscription named Sub1 that is associated to an Azure Active Directory (Azure AD) tenant named contoso.com.
The company develops an application named App1. App1 is registered in Azure AD.
You need to ensure that App1 can access secrets in Azure Key Vault on behalf of the application users. What should you configure?

• A. an application permission without admin consent
• B. a delegated permission without admin consent
• C. a delegated permission that requires admin consent
• D. an application permission that requires admin consent

Answer: B

Explanation:
Delegated permissions - Your client application needs to access the web API as the signed-in user, but with access limited by the selected permission. This type of permission can be granted by a user unless the permission requires administrator consent.
Incorrect Answers:
A, D: Application permissions - Your client application needs to access the web API directly as itself (no user context). This type of permission requires administrator consent and is also not available for public (desktop and mobile) client applications.
References:
https://docs.microsoft.com/en-us/azure/active-directory/develop/quickstart-configure-app-access-web-apis

NEW QUESTION 6
DRAG DROP
You have an Azure subscription named Sub1 that contains an Azure Storage account named Contosostorage1 and an Azure key vault named Contosokeyvault1. You plan to create an Azure Automation runbook that will rotate the keys of Contosostorage1 and store them in Contosokeyvault1.
You need to implement prerequisites to ensure that you can implement the runbook.

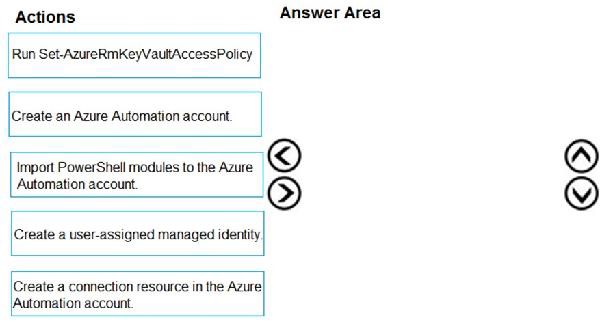

Which three actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Step 1: Create an Azure Automation account
Runbooks live within the Azure Automation account and can execute PowerShell scripts.
Step 2: Import PowerShell modules to the Azure Automation account
Under ‘Assets’ from the Azure Automation account Resources section select ‘to add in Modules to the runbook. To execute key vault cmdlets in the runbook, we need to add AzureRM.profile and AzureRM.key vault.
Step 3: Create a connection resource in the Azure Automation account
You can use the sample code below, taken from the AzureAutomationTutorialScript example runbook, to authenticate using the Run As account to manage Resource Manager resources with your runbooks. The AzureRunAsConnection is a connection asset automatically created when we created ‘run as accounts’ above. This can be found under Assets -> Connections. After the authentication code, run the same code above to get all the keys from the vault.
$connectionName = "AzureRunAsConnection" try
{
# Get the connection "AzureRunAsConnection "
$servicePrincipalConnection=Get-AutomationConnection -Name $connectionName
"Logging in to Azure..." Add-AzureRmAccount `
-ServicePrincipal `
-TenantId $servicePrincipalConnection.TenantId `
-ApplicationId $servicePrincipalConnection.ApplicationId `
-CertificateThumbprint $servicePrincipalConnection.CertificateThumbprint
}
References:
https://www.rahulpnath.com/blog/accessing-azure-key-vault-from-azure-runbook/

NEW QUESTION 7
HOTSPOT
You have two Azure virtual machines in the East US2 region as shown in the following table.

You deploy and configure an Azure Key vault.
You need to ensure that you can enable Azure Disk Encryption on VM1 and VM2.

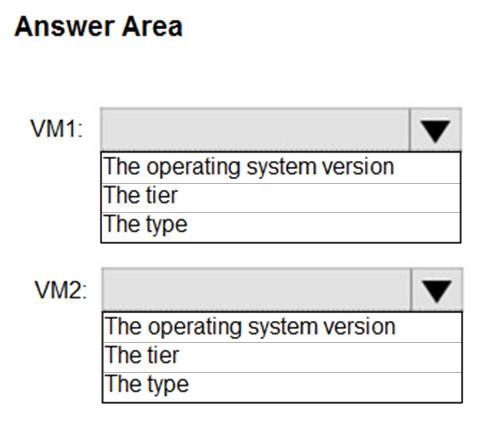

What should you modify on each virtual machine? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
VM1: The Tier
The Tier needs to be upgraded to standard.
Disk Encryption for Windows and Linux IaaS VMs is in General Availability in all Azure public regions and Azure Government regions for Standard VMs and VMs with Azure Premium Storage.
VM2: The type
Need to change the VMtype to any of A, D, DS, G, GS, F, and so on, series IaaS VMs.
Not the operating system version: Ubuntu 16.04 is supported. References:
https://docs.microsoft.com/en-us/azure/security/azure-security-disk-encryption-overview
https://docs.microsoft.com/en-us/azure/security/azure-security-disk-encryption-faq#bkmk_LinuxOSSupport

NEW QUESTION 8
HOTSPOT
Your company has two offices in Seattle and New York. Each office connects to the Internet by using a NAT device. The offices use the IP addresses shown in the following table.

The company has an Azure Active Directory (Azure AD) tenant named contoso.com. The tenant contains the users shown in the following table.

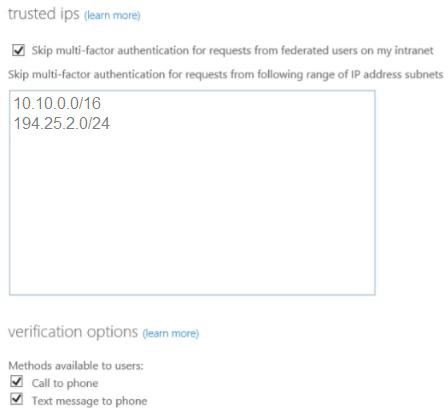

The MFA service settings are configured as shown in the exhibit. (Click the Exhibit tab.)

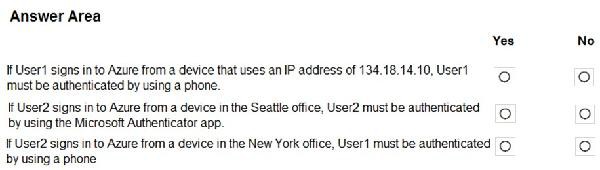

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 2: No
Use of Microsoft Authenticator is not required.
Note: Microsoft Authenticator is a multifactor app for mobile devices that generates time-based codes used during the Two-Step Verification process. Box 3: No
The New York IP address subnet is included in the "skip multi-factor authentication for request.
References:
https://www.cayosoft.com/difference-enabling-enforcing-mfa/

NEW QUESTION 9
DRAG DROP

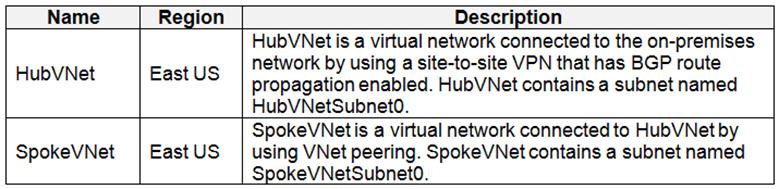

You have an Azure subscription that contains the virtual networks shown in the following table.

The Azure virtual machines on SpokeVNetSubnet0 can communicate with the computers on the on-premises network. You plan to deploy an Azure firewall to HubVNet.
You create the following two routing tables:
RT1: Includes a user-defined route that points to the private IP address of the Azure firewall as a next hop address RT2: Disables BGP route propagation and defines the private IP address of the Azure firewall as the default gateway
You need to ensure that traffic between SpokeVNetSubnet0 and the on-premises network flows through the Azure firewall.

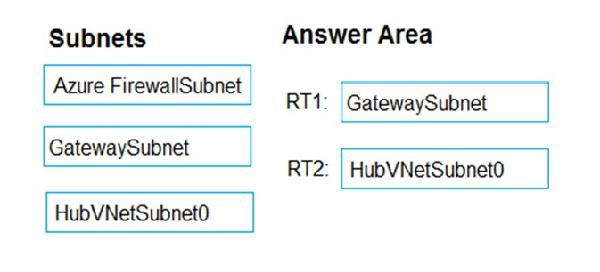

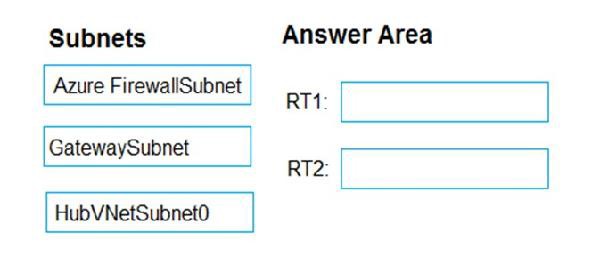

To which subnet should you associate each route table? To answer, drag the appropriate subnets to the correct route tables. Each subnet may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 10
You are configuring an Azure Kubernetes Service (AKS) cluster that will connect to an Azure Container Registry.
You need to use the auto-generated service principal to authenticate to the Azure Container Registry. What should you create?

• A. an Azure Active Directory (Azure AD) group
• B. an Azure Active Directory (Azure AD) role assignment
• C. an Azure Active Directory (Azure AD) user
• D. a secret in Azure Key Vault

Answer: B

Explanation:
When you create an AKS cluster, Azure also creates a service principal to support cluster operability with other Azure resources. You can use this auto-generated service principal for authentication with an ACR registry. To do so, you need to create an Azure AD role assignment that grants the cluster's service principal access to the container registry.
References:
https://docs.microsoft.com/bs-latn-ba/azure/container-registry/container-registry-auth-aks

NEW QUESTION 11
DRAG DROP

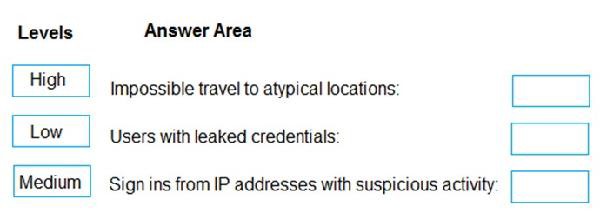

You are implementing conditional access policies.
You must evaluate the existing Azure Active Directory (Azure AD) risk events and risk levels to configure and implement the policies. You need to identify the risk level of the following risk events:
Users with leaked credentials Impossible travel to atypical locations
Sign ins from IP addresses with suspicious activity
Which level should you identify for each risk event? To answer, drag the appropriate levels to the correct risk events. Each level may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE: Each correct selection is worth one point.
Select and Place:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

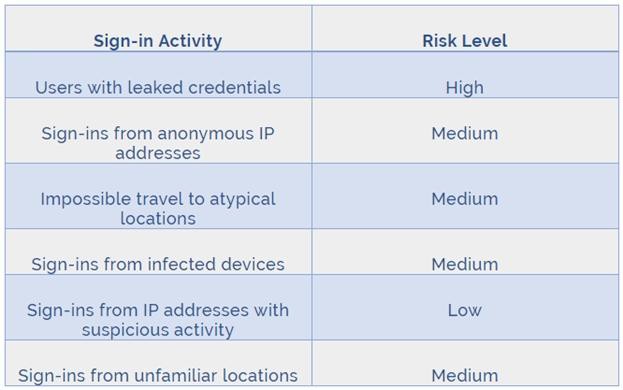

Azure AD Identity protection can detect six types of suspicious sign-in activities: Users with leaked credentials
Sign-ins from anonymous IP addresses Impossible travel to atypical locations
Sign-ins from infected devices
Sign-ins from IP addresses with suspicious activity Sign-ins from unfamiliar locations
These six types of events are categorized in to 3 levels of risks – High, Medium & Low:

References:
http://www.rebeladmin.com/2021/09/step-step-guide-configure-risk-based-azure-conditional-access-policies/

NEW QUESTION 12
HOTSPOT

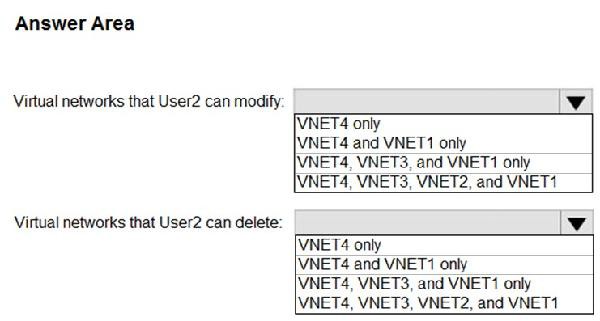

Which virtual networks in Sub1 can User2 modify and delete in their current state? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: VNET4 and VNET1 only
RG1 has only Delete lock, while there are no locks on RG4. RG2 and RG3 both have Read-only locks.
Box 2: VNET4 only
There are no locks on RG4, while the other resource groups have either Delete or Read-only locks.
Note: As an administrator, you may need to lock a subscription, resource group, or resource to prevent other users in your organization from accidentally deleting or modifying critical resources. You can set the lock level to CanNotDelete or ReadOnly. In the portal, the locks are called Delete and Read-only respectively.
CanNotDelete means authorized users can still read and modify a resource, but they can't delete the resource.
ReadOnly means authorized users can read a resource, but they can't delete or update the resource. Applying this lock is similar to restricting all authorized users to the permissions granted by the Reader role.
Scenario:
User2 is a Security administrator.
Sub1 contains six resource groups named RG1, RG2, RG3, RG4, RG5, and RG6.
User2 creates the virtual networks shown in the following table.

Sub1 contains the locks shown in the following table.

References:
https://docs.microsoft.com/en-us/azure/azure-resource-manager/resource-group-lock-resources
Testlet 2
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other question on this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next sections of the exam. After you begin a new section, you cannot return to this section.
To start the case study
To display the first question on this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.
Overview
Litware, Inc. is a digital media company that has 500 employees in the Chicago area and 20 employees in the San Francisco area.
Existing Environment
Litware has an Azure subscription named Sub1 that has a subscription ID of 43894a43-17c2-4a39-8cfc-3540c2653ef4.
Sub1 is associated to an Azure Active Directory (Azure AD) tenant named litwareinc.com. The tenant contains the user objects and the device objects of all the Litware employees and their devices. Each user is assigned an Azure AD Premium P2 license. Azure AD Privileged Identity Management (PIM) is activated.

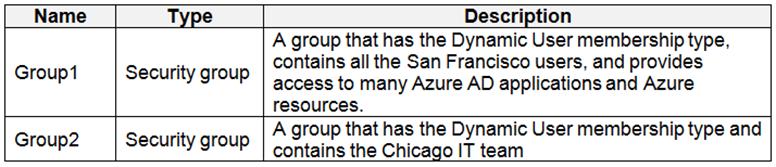

The tenant contains the groups shown in the following table.

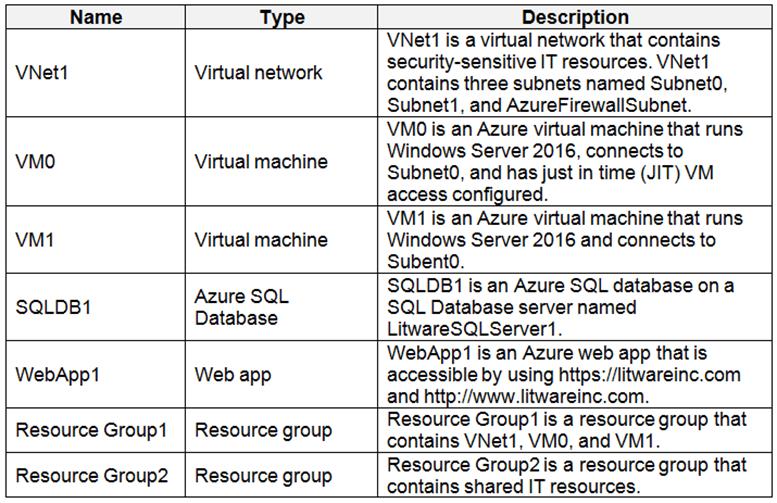

The Azure subscription contains the objects shown in the following table.

Azure Security Center is set to the Free tier.
Planned changes

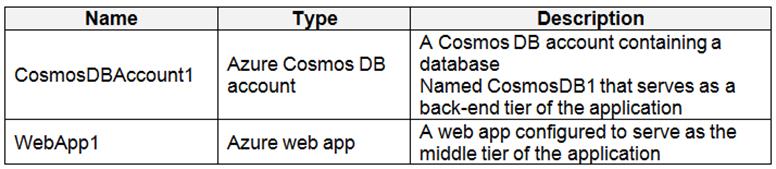

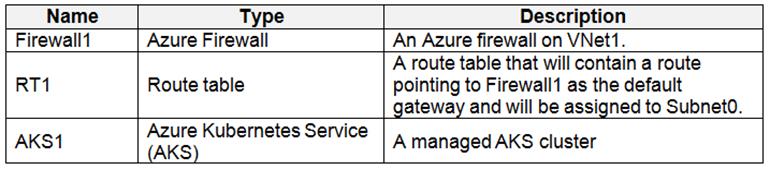

Litware plans to deploy the Azure resources shown in the following table.

Litware identifies the following identity and access requirements:
All San Francisco users and their devices must be members of Group1.
The members of Group2 must be assigned the Contributor role to Resource Group2 by using a permanent eligible assignment.
Users must be prevented from registering applications in Azure AD and from consenting to applications that access company information on the users’ behalf.
Platform Protection Requirements
Litware identifies the following platform protection requirements:
Microsoft Antimalware must be installed on the virtual machines in Resource Group1.
The members of Group2 must be assigned the Azure Kubernetes Service Cluster Admin Role. Azure AD users must be to authenticate to AKS1 by using their Azure AD credentials.
Following the implementation of the planned changes, the IT team must be able to connect to VM0 by using JIT VM access.
A new custom RBAC role named Role1 must be used to delegate the administration of the managed disks in Resource Group1. Role1 must be available only for Resource Group1.
Security Operations Requirements
Litware must be able to customize the operating system security configurations in Azure Security Center.

NEW QUESTION 13
From the Azure portal, you are configuring an Azure policy.
You plan to assign policies that use the DeployIfNotExist, AuditIfNotExist, Append, and Deny effects. Which effect requires a managed identity for the assignment?

• A. AuditIfNotExist
• B. Append
• C. DeployIfNotExist
• D. Deny

Answer: C

Explanation:
When Azure Policy runs the template in the deployIfNotExists policy definition, it does so using a managed identity.
References:
https://docs.microsoft.com/bs-latn-ba/azure/governance/policy/how-to/remediate-resources

NEW QUESTION 14
HOTSPOT
You have an Azure subscription named Sub1 that is associated to an Azure Active Directory (Azure AD) tenant named contoso.com. You plan to implement an application that will consist of the resources shown in the following table.

Users will authenticate by using their Azure AD user account and access the Cosmos DB account by using resource tokens. You need to identify which tasks will be implemented in CosmosDB1 and WebApp1.

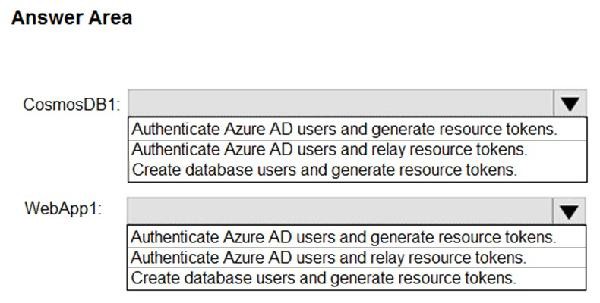

Which task should you identify for each resource? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
CosmosDB1: Create database users and generate resource tokens.
Azure Cosmos DB resource tokens provide a safe mechanism for allowing clients to read, write, and delete specific resources in an Azure Cosmos DB account according to the granted permissions.
WebApp1: Authenticate Azure AD users and relay resource tokens

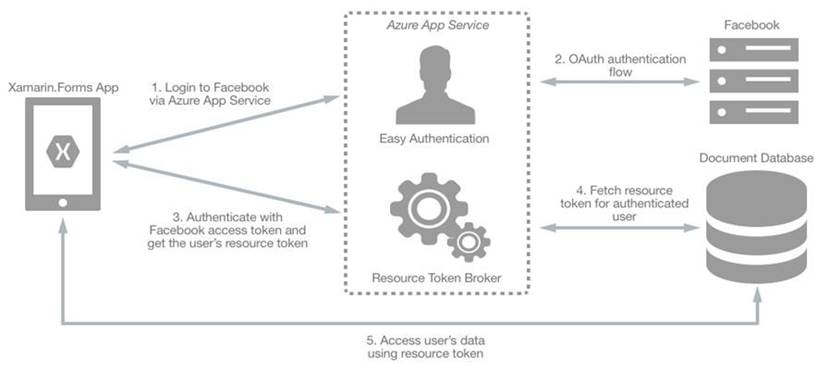

A typical approach to requesting, generating, and delivering resource tokens to a mobile application is to use a resource token broker. The following diagram shows a high-level overview of how the sample application uses a resource token broker to manage access to the document database data:

References:
https://docs.microsoft.com/en-us/xamarin/xamarin-forms/data-cloud/cosmosdb/authentication

NEW QUESTION 15
Your company has an Azure subscription named Sub1 that is associated to an Azure Active Directory Azure (Azure AD) tenant named contoso.com.
The company develops a mobile application named App1. App1 uses the OAuth 2 implicit grant type to acquire Azure AD access tokens. You need to register App1 in Azure AD.
What information should you obtain from the developer to register the application?

• A. a redirect URI
• B. a reply URL
• C. a key
• D. an application ID

Answer: A

Explanation:
For Native Applications you need to provide a Redirect URI, which Azure AD will use to return token responses.
References:
https://docs.microsoft.com/en-us/azure/active-directory/develop/v1-protocols-oauth-code

NEW QUESTION 16
You need to ensure that you can meet the security operations requirements.
What should you do first?

• A. Turn on Auto Provisioning in Security Center.
• B. Integrate Security Center and Microsoft Cloud App Security.
• C. Upgrade the pricing tier of Security Center to Standard.
• D. Modify the Security Center workspace configuration.

Answer: C

Explanation:
The Standard tier extends the capabilities of the Free tier to workloads running in private and other public clouds, providing unified security management and threat protection across your hybrid cloud workloads. The Standard tier also adds advanced threat detection capabilities, which uses built-in behavioral analytics and machine learning to identify attacks and zero-day exploits, access and application controls to reduce exposure to network attacks and malware, and more.
Scenario: Security Operations Requirements
Litware must be able to customize the operating system security configurations in Azure Security Center. References:
https://docs.microsoft.com/en-us/azure/security-center/security-center-pricing
Question Set 3

NEW QUESTION 17
Your network contains an Active Directory forest named contoso.com. The forest contains a single domain.
You have an Azure subscription named Sub1 that is associated to an Azure Active Directory (Azure AD) tenant named contoso.com. You plan to deploy Azure AD Connect and to integrate Active Directory and the Azure AD tenant.
You need to recommend an integration solution that meets the following requirements:
Ensures that password policies and user logon restrictions apply to user accounts that are synced to the tenant Minimizes the number of servers required for the solution.
Which authentication method should you include in the recommendation?

• A. federated identity with Active Directory Federation Services (AD FS)
• B. password hash synchronization with seamless single sign-on (SSO)
• C. pass-through authentication with seamless single sign-on (SSO)

Answer: B

Explanation:
Password hash synchronization requires the least effort regarding deployment, maintenance, and infrastructure. This level of effort typically applies to organizations that only need their users to sign in to Office 365, SaaS apps, and other Azure AD-based resources. When turned on, password hash synchronization is part of the Azure AD Connect sync process and runs every two minutes.
Incorrect Answers:
A: A federated authentication system relies on an external trusted system to authenticate users. Some companies want to reuse their existing federated system investment with their Azure AD hybrid identity solution. The maintenance and management of the federated system falls outside the control of Azure AD. It's up to the organization by using the federated system to make sure it's deployed securely and can handle the authentication load.
C: For pass-through authentication, you need one or more (we recommend three) lightweight agents installed on existing servers. These agents must have access to your on-premises Active Directory Domain Services, including your on-premises AD domain controllers. They need outbound access to the Internet and access to your domain controllers. For this reason, it's not supported to deploy the agents in a perimeter network.
Pass-through Authentication requires unconstrained network access to domain controllers. All network traffic is encrypted and limited to authentication requests.
References:
https://docs.microsoft.com/en-us/azure/active-directory/hybrid/how-to-connect-pta

NEW QUESTION 18
HOTSPOT

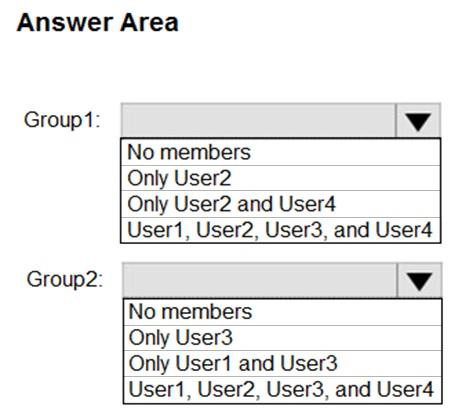

What is the membership of Group1 and Group2? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
Box 1: User1, User2, User3, User4
Contains "ON" is true for Montreal (User1), MONTREAL (User2), London (User 3), and Ontario (User4) as string and regex operations are not case sensitive.
Box 2: Only User3
Match "*on" is only true for London (User3).
Scenario:
Contoso.com contains the users shown in the following table.

Contoso.com contains the security groups shown in the following table.

References:
https://docs.microsoft.com/en-us/azure/active-directory/users-groups-roles/groups-dynamic-membership

NEW QUESTION 19
You have an Azure subscription named Sub1.
In Azure Security Center, you have a security playbook named Play1. Play1 is configured to send an email message to a user named User1. You need to modify Play1 to send email messages to a distribution group named Alerts.
What should you use to modify Play1?

• A. Azure DevOps
• B. Azure Application Insights
• C. Azure Monitor
• D. Azure Logic Apps Designer

Answer: D

Explanation:
You can change an existing playbook in Security Center to add an action, or conditions. To do that you just need to click on the name of the playbook that you want to change, in the Playbooks tab, and Logic App Designer opens up.
References:
https://docs.microsoft.com/en-us/azure/security-center/security-center-playbooks

NEW QUESTION 20
You are testing an Azure Kubernetes Service (AKS) cluster. The cluster is configured as shown in the exhibit. (Click the Exhibit tab.)

You plan to deploy the cluster to production. You disable HTTP application routing.
You need to implement application routing that will provide reverse proxy and TLS termination for AKS services by using a single IP address. What should you do?

• A. Create an AKS Ingress controller.
• B. Install the container network interface (CNI) plug-in.
• C. Create an Azure Standard Load Balancer.
• D. Create an Azure Basic Load Balancer.

Answer: A

Explanation:
An ingress controller is a piece of software that provides reverse proxy, configurable traffic routing, and TLS termination for Kubernetes services.
References:
https://docs.microsoft.com/en-us/azure/aks/ingress-tls

NEW QUESTION 21
HOTSPOT
You have an Azure subscription named Sub1.

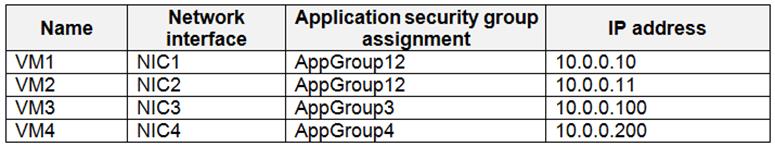

You create a virtual network that contains one subnet. On the subnet, you provision the virtual machines shown in the following table.

Currently, you have not provisioned any network security groups (NSGs). You need to implement network security to meet the following requirements:
Allow traffic to VM4 from VM3 only.
Allow traffic from the Internet to VM1 and VM2 only. Minimize the number of NSGs and network security rules.

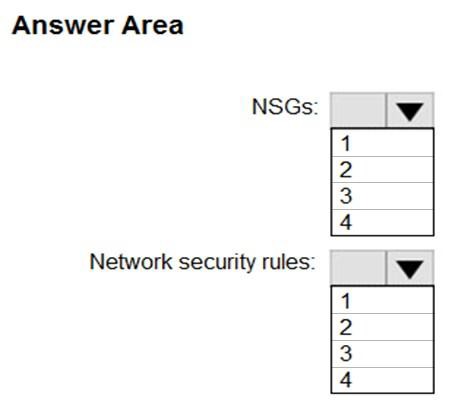

How many NSGs and network security rules should you create? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Hot Area:

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:
NSGs: 2
Network security rules: 3
Not 2: You cannot specify multiple service tags or application groups) in a security rule.
References:
https://docs.microsoft.com/en-us/azure/virtual-network/security-overview

NEW QUESTION 22
......
