How Many Questions Of 400-007 Actual Test

NEW QUESTION 1
A network engineering team is in the process of designing a lab network for a customer demonstration. The design engineer wants to show that the resiliency of the MPLS traffic Engineering Fast Reroute solution has the same failover/failback times as a traditional SONET/SDH network (around 50MSEC). In order to address both link failure and node failure within the lab typology network, which type of the MPLS TE tunnels must be considered for this demonstration?

• A. TE backup tunnel
• B. Next-hop (NHop) tunnel
• C. FRR Backup tunnel
• D. next-next-hop (NNHop) tunnel

Answer: D

NEW QUESTION 2
Which two pain points are the most common for container technology adoption? (Choose two)

• A. Performance
• B. Security
• C. Cost
• D. Container deployment
• E. Skilled staff
• F. Compliance

Answer: DE

NEW QUESTION 3
What best describes the difference between Automation and Orchestration?

• A. Automation refers to an automatic process for completing a single task and Orchestration refers to assembling and coordinating a set of tasks and conditions.
• B. Automation describes a hands-off configuration process while Orchestration refers to sets of automation tasks that require the network administrator to coordinate
• C. Automation refers to an automatic process for completing multiple tasks with conditions and Orchestration refers to executing tasks in parallel.
• D. Automation refers to scripting languages (Pytho
• E. Ansible etc.) and Orchestration refers to commercial products that control configuration deployment

Answer: A

NEW QUESTION 4
What is a description of a control plane action?

• A. de-encapsulating and re-encapsulating a packet in a data-link frame
• B. matching the destination MAC address of an Ethernet frame to the MAC address table
• C. matching the destination IP address of an IP packet to the IP routing table
• D. hosts locating routers that reside on attached links using the IPv6 Neighbor Discover Protocol

Answer: D

NEW QUESTION 5
Company XYZ is planning to deploy primary and secondary (disaster recovery) data center sites. Each of these sites will have redundant SAN fabrics and data protection is expected between the data center sites. The sites are 100 miles (160 km) apart and target RPO/RTO are 3 hrs and 24 hrs, respectively. Which two considerations must Company XYZ bear in mind when deploying replication in their scenario? (Choose two.)

• A. Target RPO/RTO requirements cannot be met due to the one-way delay introduced by the distance between sites.
• B. VSANs must be routed between sites to isolate fault domains and increase overall availability.
• C. Synchronous data replication must be used to meet the business requirements
• D. Asynchronous data replication should be used in this scenario to avoid performance impact in the primary site.
• E. VSANs must be extended from the primary to the secondary site to improve performance and availability.

Answer: CD

Explanation:
synchronous data replication must be used to meet the business requirements, is incorrect. As described above, asynchronous replication would be a better choice in this scenario due to the distance between the data center sites and the target RPO/RTO requirements.
asynchronous data replication should be used in this scenario to avoid performance impact in the primary site, is correct. Asynchronous replication would allow Company XYZ to meet the target RPO/RTO requirements while avoiding the performance impact of synchronous replication.

NEW QUESTION 6

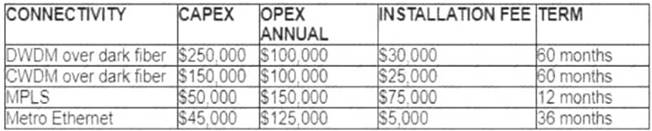

Refer to the table.

A customer investigates connectivity options for a DCI between two production data centers. The solution must provide dual 10G connections between locations with no single points of failure for Day 1 operations. It must also include an option to scale for up to 20 resilient connections in the second year to accommodate isolated SAN over IP and isolated, dedicated replication IP circuits. All connectivity methods are duplex 10 Gbps. Which transport technology costs the least over two years, in the scenario?

• A. Metro Ethernet
• B. DWDM
• C. CWDM
• D. MPLS

Answer: B

NEW QUESTION 7
A multicast network is sing Bidirectional PIM. Which two combined actions achieve high availability so that two RPs within the same network can act in a redundant manner? (Choose two)

• A. Use two phantom RP addresses
• B. Manipulate the administration distance of the unicast routes to the two RPs
• C. Manipulate the multicast routing table by creating static mroutes to the two RPs
• D. Advertise the two RP addresses in the routing protocol
• E. Use anycast RP based on MSDP peering between the two RPs
• F. Control routing to the two RPs through a longest match prefix

Answer: AF

Explanation:
https://community.cisco.com/t5/networking-knowledge-base/rp-redundancy-with-pim-bidir-phantom-rp/ta-p/31

NEW QUESTION 8
In the case of outsourced IT services, the RTO is defined within the SLA. Which two support terms are often included in the SLA by IT and other service providers? (Choose two.)

• A. network size and cost
• B. support availability
• C. network sustainability
• D. network reliability
• E. resolution time

Answer: BE

NEW QUESTION 9

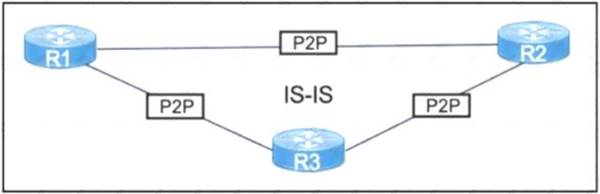

Refer to the exhibit.

After a network audit a network engineer must optimize the current network convergence time The proposed solution must consider link layer and control plane failures. Which solution meets the requirements?

• A. Configure debounce timers
• B. Increase fast hello timers
• C. Implement BFD
• D. Enable LSP fast flood

Answer: C

NEW QUESTION 10
What is a disadvantage of the traditional three-tier architecture model when east west traffic between different pods must go through the distribution and core layers?

• A. low bandwidth
• B. security
• C. scalability
• D. high latency

Answer: A

NEW QUESTION 11
An enterprise has identified these causes for inefficient CAPEX spending:
CAPEX planning is driven by technology and not by business objectives.
The CAPEX planning team lacks the data it needs to perform due diligence tasks.
The organizational structure lacks sufficient accountability and incentives.
Which corporate cultural change contributes to improving the effectiveness of CAPEX spending?

• A. Build a financial control function that delivers high-quality reports on operational expenses for business insight and financial reporting.
• B. CxO-level staff must have a full technical understanding but the should not trust their technical leaders fully.
• C. Adopt new organizational models that promote real accountability for RO
• D. not just revenu
• E. EBITDA, and cash.
• F. Marketing and product management divisions must reduce their CAPEX budgets significantly to drive the change.

Answer: C

NEW QUESTION 12
Which two actions ensure voice quality in a branch location with a low-speed, high-latency WAN connection? (Choose two.)

• A. Increase WAN bandwidth
• B. Increase memory branch switch.
• C. Fragment data packets.
• D. Replace any electrical links with optical links
• E. Prioritize voice packets

Answer: CE

NEW QUESTION 13
Which parameter is the most important factor to consider when deciding service placement in a cloud solution?

• A. data replication cost
• B. application structure
• C. security framework Implementation time
• D. data confidentiality rules

Answer: D

NEW QUESTION 14
Refer to the exhibit.

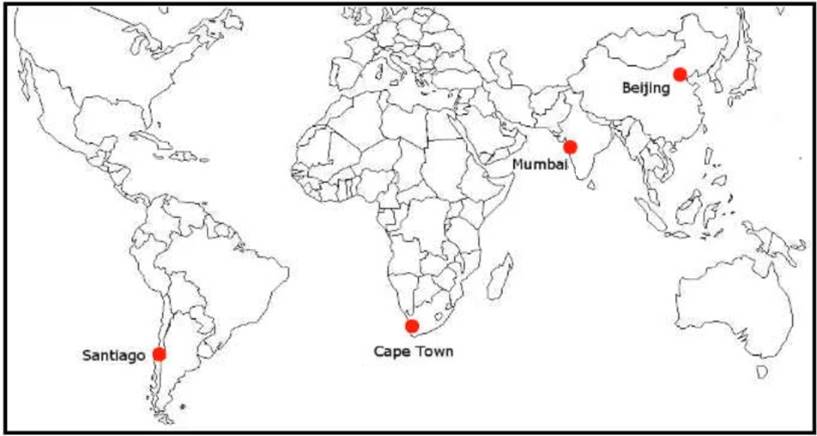

ACME Mining has four data centers in Santiago. Cape Town. Mumbai, and Beijing, full-mesh connected via a 400 Mb/s EVP-LAN They want to deploy a new mission-critical application with these
requirements:
cluster heartbeat 2 Mb/s continuous (250 KB/s)
cluster heartbeat one-way maximum latency 100 ms

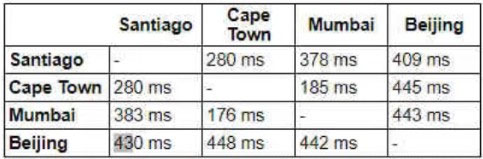

These are the current ping tests results between the four data centers:

Which hosting data center pair can host the new application?

• A. Mumbai and Beijing
• B. Santiago and Cape Town
• C. Santiago and Mumbai
• D. Cape Town and Mumbai
• E. Cape Town and Beijing
• F. Santiago and Beijing

Answer: D

NEW QUESTION 15
Which purpose of a dynamically created tunnel interface on the design of IPv6 multicast services Is true?

• A. first-hop router registration to the RP
• B. multicast client registration to the RP
• C. multicast source registration to the RP
• D. transport of all IPv6 multicast traffic

Answer: D

NEW QUESTION 16
Company XYZ has 30 sites running a legacy private WAN architecture that connects to the Internet via multiple high- speed connections The company is now redesigning their network and must comply with these design requirements :
Use a private WAN strategy that allows the sites to connect to each other directly and caters for future expansion.
Use the Internet as the underlay for the private WAN.
Securely transfer the corporate data over the private WAN.
Which two technologies should be Incorporated into the design of this network? (Choose two.)

• A. S-VTI
• B. IPsec
• C. DMVPN
• D. GET VPN
• E. PPTP

Answer: BC

NEW QUESTION 17
Company XYZ, a global content provider, owns data centers on different continents Their data center design involves a standard three-layer design with a Layer 3-only core VRRP is used as the FHRP They require VLAN extension across access switches in all data centers, and they plan to purchase a Layer 2 interconnection between two of their data centers in Europe in the absence of other business or technical constraints which termination point is optimal for the Layer 2 interconnection?

• A. at the core layer, to offer the possibility to isolate STP domains
• B. at the access layer because the STP root bridge does not need to align with the VRRP active node
• C. at the core layer because all external connections must terminate there for security reasons
• D. at the aggregation layer because it is the Layer 2 to Layer 3 demarcation point

Answer: D

NEW QUESTION 18
Which two actions must merchants do to be compliant with the Payment Card Industry Data Security Standard? (Choose two.)

• A. conduct risk analyses
• B. install firewalls
• C. use antivirus software
• D. establish monitoring policies
• E. establish risk management policies

Answer: BC

NEW QUESTION 19
An architect receives a functional requirement for a NAC system from a customer security policy stating that if a corporate Wi-Fi device does not meet current AV definitions, then it cannot access the corporate network until the definitions are updated. Which component should be built into the NAC design?

• A. posture assessment with remediation VLAN
• B. quarantine SGTs
• C. dACLs with SGTs
• D. quarantine VLAN

Answer: A

NEW QUESTION 20
When consumers that leverage laaS reach 100% resource capacity, what can be used to redirect the overflow of traffic to the public cloud so there is no disruption to service?

• A. cloud policing
• B. cloud spill
• C. cloud bursting
• D. cloud shaping

Answer: C

NEW QUESTION 21
......
