NEW QUESTION 1
Which two characteristics would you consider when selecting spine devices in an IP fabric? (Choose two.)

• A. scaling limitations
• B. spanning tree limitations
• C. port density
• D. data center location

Answer: BD

NEW QUESTION 2
Which two statements about the seamless EVPN-VXLAN stitching interconnect gateways are correct? (Choose two.)

• A. IBGP is recommended for VXLAN stitching overlays.
• B. Interconnect gateways will rewrite the route target, route distinguishe
• C. and ESI values for each stretched virtual network.
• D. All EVPN routes types are forwarded among interconnect gateways in a full-mesh manner.
• E. The interconnect gateway can reside on the super spine layer of a multi-POD data center.

Answer: CD

NEW QUESTION 3

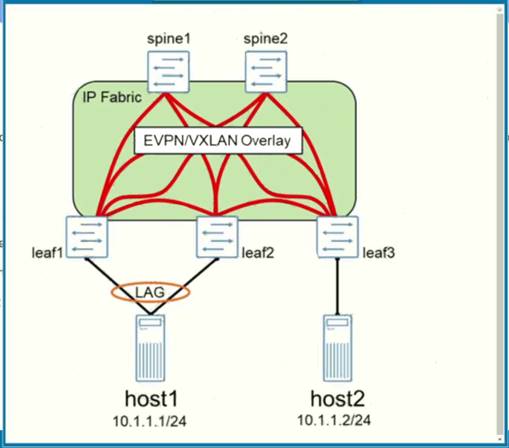

Exhibit.

An EVPN-signaled VXLAN overlay has been deployed in the network shown in the exhibit. An EVPN LAG has been configured to connect host1 to the network, and device leaf1 has been elected as the designated forwarder.

• A. In this scenario, which statement is true?
• B. The Ieaf3 device can utilize both leaf1 and Ieaf2 to forward unicast packets from host2 to host1.
• C. An ICCP control link must be configured between leaf1 and Ieaf2.
• D. The Ieaf3 device will only receive an advertisement to the LAG segment from leaf1.
• E. Broadcast packets sent from host2 will not be forwarded to Ieaf2.

Answer: C

NEW QUESTION 4

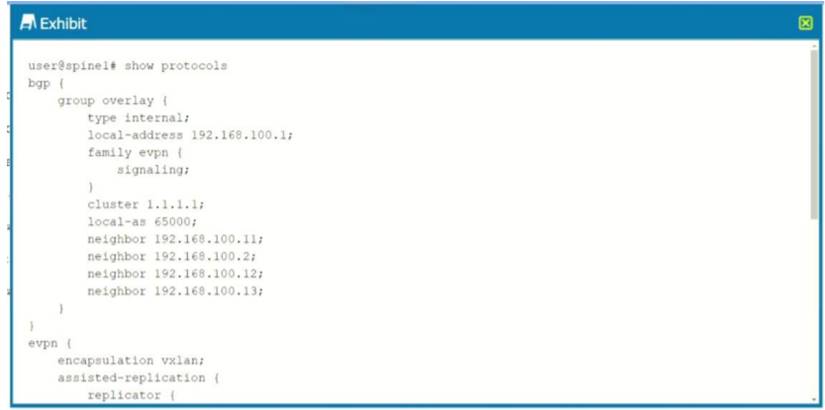

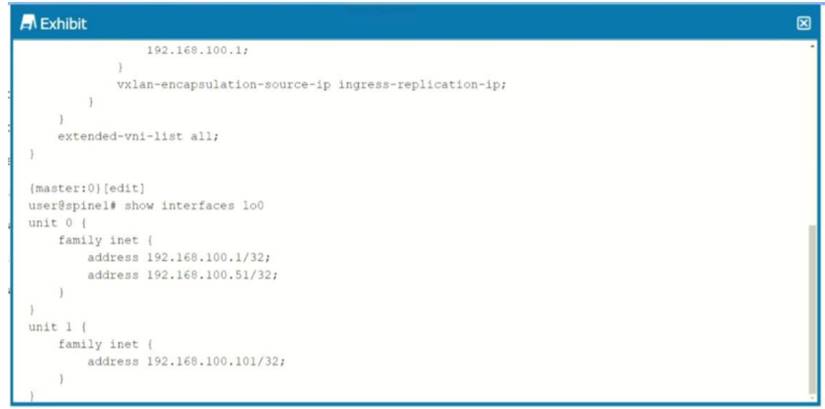

Exhibit.
The configuration shown in the exhibit is intended to set up assisted replication but will not commit.


Which action will create a valid configuration in this situation?

• A. Change the 10.0 address to 192.168.100.1 primary.
• B. Change the replicator inet address to 192.168.100.101.
• C. Delete replicator inet 192.168.100.1.
• D. Change the replicator inet address to 192.168.100. 51.

Answer: B

NEW QUESTION 5
You are deploying a switch using ZTP.
Which two statements are true in this scenario? (Choose two.)

• A. If the switch is already running the referenced image, no action is performed and the switch moves to the next ZTP step in the ZTP process.
• B. Using DHCP Option 150. the DHCP server informs the switch of a software image name.
• C. Using DHCP Option 43 sub option 01, the DHCP server informs the switch of the configuration file name.
• D. If no configuration file is referenced in DHCP Options, the switch downloads a default configuration file from the storage server.

Answer: AD

NEW QUESTION 6
You are deploying a 3-stage Clos IP fabric in your data center. In this scenario, which statement is correct?

• A. Each server-facing interface on a leaf node is always three hops away from other server-facing interfaces.
• B. Each spine node must be physically connected to all other spine nodes.
• C. There is an eight-spine node limitation.
• D. No direct physical connections exist between leaf nodes.

Answer: A

NEW QUESTION 7
You are configuring a DCI VPN solution between sites that require an L3VPN to work with your EVPN
deployment. Your organization's policy restricts configuring RSVP and LDP on your WAN links. While configuring the solution, you notice that no routes exist in the inet table.
In this scenario, which parameter will solve this problem?

• A. bgp family inet labeled-unicast per-group-label
• B. bgp family inet labeled-unicast aggregate-label
• C. bgp family inet labeled-unicast resolve-vpn
• D. bgp family evpn signaling

Answer: D

NEW QUESTION 8
You are an engineer for a hosting company. You have a new customer that wants the ability to connect any VLAN on any port. They want to have all VLANs map to a single bridge domain and EVPN instance (EVI). They control all their own routing and just need the connectivity.
Which two parameters should you configure to achieve these goals? (Choose two.)

• A. instance-type mac-vrf
• B. service-type vlan-aware
• C. service-type vlan-bundle
• D. instance-type virtual-switch

Answer: CD

NEW QUESTION 9
You have deployed a multitenant EVPN-VXLAN fabric. You must have the routes in the BLUE VRF show up in the RED VRF. In this scenario, how would you achieve this goal?

• A. Configure a VRF export policy on the BLUE VRF that matches the RED VRF route target.
• B. Configure the RED route target in the BLUE VRF.
• C. Configure the BLUE route target in the RED VRF.
• D. Configure a VRF import policy on the RED VRF that matches the BLUE VRF route target.

Answer: D

NEW QUESTION 10
You are asked to configure JTI on the QFX Series devices in your data center fabric. You must use sensors with the least amount of latency. Which type of sensor should you use in this scenario?

• A. Python sensors
• B. JTI native sensors
• C. analog sensors
• D. JTI OpenConfig sensors

Answer: B

NEW QUESTION 11
A customer wants to connect two data centers on different subnets using EVPN. What are two implications of using different IP subnets at each site? (Choose two.)

• A. Using different IP subnets at each site allows Layer 3 gateways to exchange only type-3 routes.
• B. MAC addresses will need to be advertised between the data centers.
• C. MAC addresses will not need to be advertised between the data centers.
• D. Using different IP subnets at each site allows Layer 3 gateways to exchange only type-5 routes.

Answer: CD

NEW QUESTION 12
What is an advantage that EVPN has over VPLS when used for DC I?

• A. mass MAC withdrawal
• B. transparent BPDU transport
• C. active/standby multihoming
• D. reverse path forwarding

Answer: A

NEW QUESTION 13
Which two statements are correct about a spine and leaf-based IP fabric? (Choose two.)

• A. Traffic is diverted within the fabric when a device or link fails.
• B. There is no need for redundancy at the server level.
• C. Leaf switches broadcast frames to all other leaf devices.
• D. Clos networks demonstrate good scaling features.

Answer: AD

NEW QUESTION 14

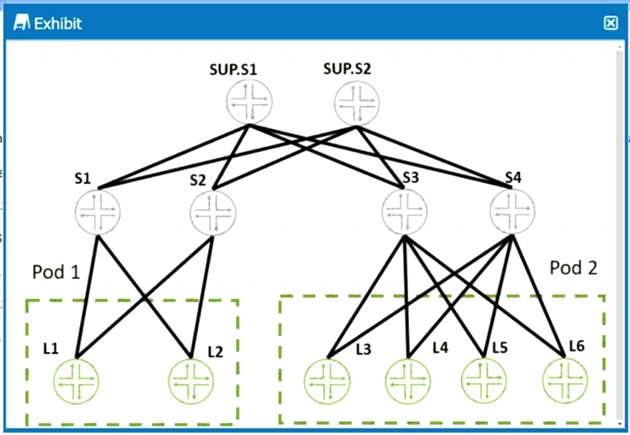

Exhibit.

Referring to the exhibit, you have a data center with two PODs. Seamless EVPN-VXLAN stitching is used to facilitate communication between the PODs.
Which three statements are true in this scenario? (Choose three.)

• A. AVXLAN tunnel can form between L2 and S1.
• B. A VXLAN tunnel can form between S1 and S2.
• C. AVXLAN tunnel can form between L1 and L2.
• D. AVXLAN tunnel can form between L2 and S3.
• E. AVXLAN tunnel can form between L1 and L4.

Answer: ABD

NEW QUESTION 15

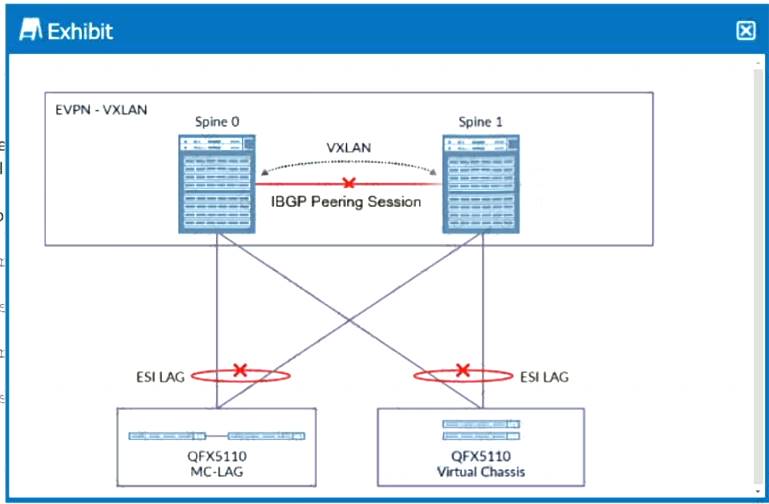

Exhibit.

Referring to the exhibit, you have a data center in which only the spine devices are using EVPN and VXLAN. The leaf nodes are multihomed in active-active mode to the spine nodes through ESI LAG interfaces. In this design, a link failure on the interface connecting the spine nodes would also cause all traffic from the spine to the leaf nodes to drop.
In this scenario, which command configured on which nodes would solve this problem?

• A. the disable protocols evpn no-core-isolation command on the spine nodes
• B. the set protocols evpn no-core-isolation command on the spine nodes
• C. the disable protocols evpn no-core-isolation command on the leaf nodes
• D. the set protocols evpn no-core-isolation command on the leaf nodes

Answer: A

NEW QUESTION 16
You are asked to scale the available bandwidth within your Clos data center network to support more east-west traffic. In this scenario, what are two ways to accomplish this task? (Choose two.)

• A. Add leaf devices to increase available paths and bandwidth
• B. Use aggregated interfaces in the fabric.
• C. Add spines to increase available paths and bandwidth.
• D. Interconnect all spines to increase available paths and bandwidth.

Answer: BD

NEW QUESTION 17

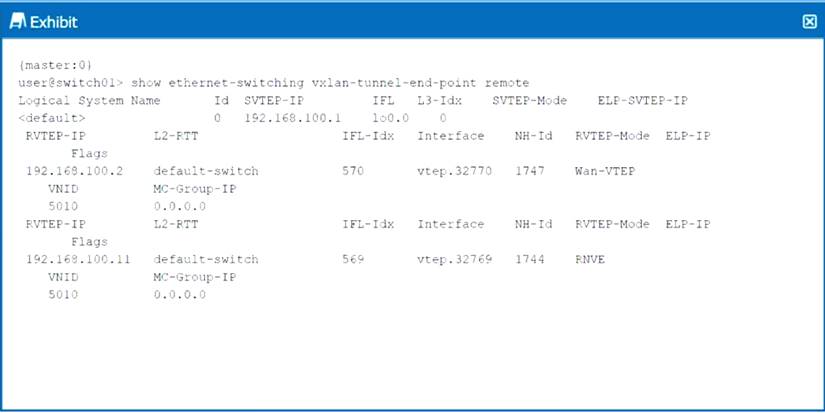

Click the exhibit button.

Referring to the exhibit, which two statements are correct? (Choose two.)

• A. Seamless EVPN VXLAN stitching is in use.
• B. Switch01 is a spine device.
• C. An OTT data center interconnect is in use.
• D. Switch01 is a leaf device.

Answer: AD
