Down To Date 010-151 Paper 2021

NEW QUESTION 1
On the Sensors page from the CIMC view, which four tabs are displayed to view further information? (Choose four.)

• A. Power Supply
• B. Fan
• C. Memory
• D. CPU
• E. LEDs
• F. Temperature

Answer: ABEF

NEW QUESTION 2
Which two statements about the Ethernet media are true? (Choose two.)

• A. A twisted-pair cable system has each pair of wires twisted together to reduce electromagnetic interferenc
• B. Compared to multimode fiber, the single-mode fiber is designed for shorter distances with higher cos
• C. 40 Gigabit Ethernet twinax cables deploy Enhanced Quad Small Form Factor Pluggable (QSFP+) connector
• D. The twinax cables can be found in either a shielded twisted-pair or an unshielded twisted-pair variatio

Answer: AC

NEW QUESTION 3

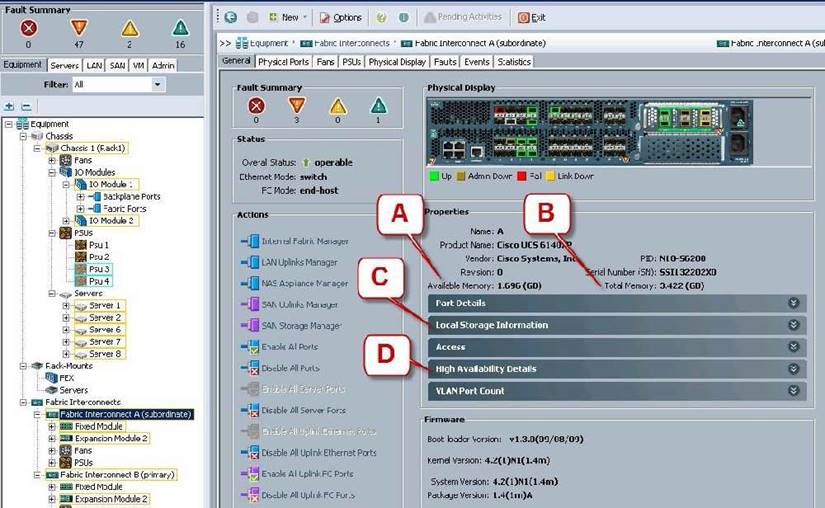

Refer to the exhibit.

Where is the best place to see bootflash free space?

• A. A - Available Memory
• B. B - Total Memory
• C. C - Local Storage Information
• D. D - High Availability Details

Answer: C

NEW QUESTION 4
Which three troubleshooting procedures do you perform when there is no power to a Cisco UCS B250 M2 Blade Server? (Choose three.)

• A. Decommission and acknowledge the blad
• B. Check the back of the blade to ensure that there is no damage to the connection that goes into chassi
• C. Reseat the memory DIMM
• D. Check the CPU sockets for bent pin
• E. Reseat the blade in the same slot in the chassi
• F. Move the blade to another slot in the chassi

Answer: BEF

NEW QUESTION 5
What does the system status LED look like when an over temperature or major alarm occurs on the Cisco UCS 6120XP Fabric Interconnect?

• A. Amber
• B. Red
• C. Blinking amber
• D. Blinking red

Answer: C

NEW QUESTION 6
Up to what speed can Category 5e UTP cable transmit data?

• A. 10 Mb/s
• B. 100 Mb/s
• C. 1000 Mb/s
• D. 10000 Mb/s

Answer: C

NEW QUESTION 7
Which five things should the administrator verify after performing maintenance or replacing a blade server? (Choose five.)

• A. blade server status
• B. hard drive status
• C. host OS boot status
• D. CPU status
• E. mezzanine card status
• F. memory DIMM status
• G. fan and power status

Answer: ABDEF

NEW QUESTION 8

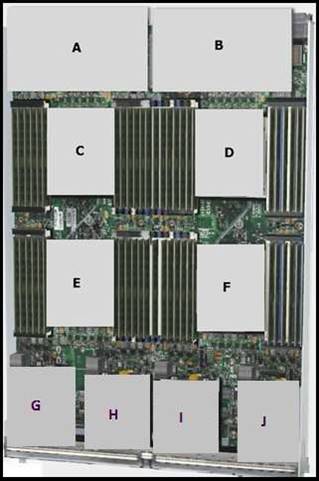

Refer to the exhibit.

Which item does F represent?

• A. HDD 1
• B. TFP Module
• C. SuperCap Module
• D. CPU 2
• E. CMOS Battery

Answer: D

NEW QUESTION 9

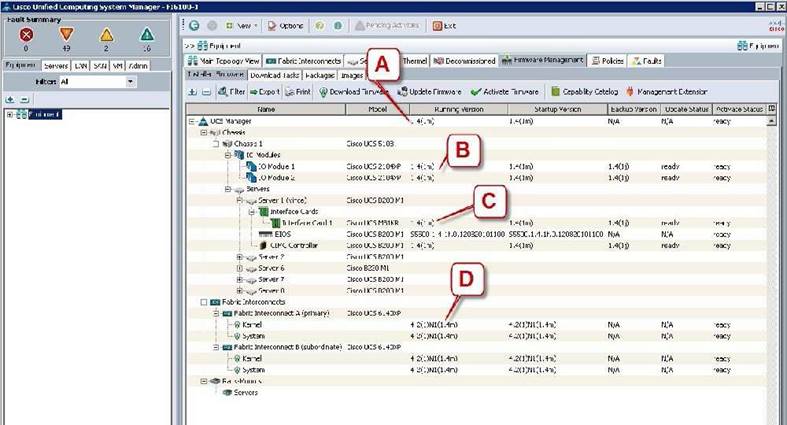

Refer to the exhibit.

Which call-out accurately shows the current running version of the Cisco UCS Manager management software?

• A. A - UCS Manager running version 1.4(1m)
• B. B - IO Module 1 running version 1.4(1m)
• C. C - Interface Card 1 running version 1.4(1m)
• D. D - Kernel running version 4.2(1)N(1.4m)

Answer: A

NEW QUESTION 10
Which processor option is supported in the Cisco UCS C420 M3 Server?

• A. up to two Intel Xeon E5-4600 series multicore processors
• B. up to two Intel Xeon E7-4800 series multicore processors
• C. up to four Intel Xeon E5-4600 series multicore processors
• D. two or four Intel Xeon E7-8800 series multicore processors

Answer: C

NEW QUESTION 11
Which two statements about the Cisco Nexus 5596UP switch are true? (Choose two.)

• A. Its power supplies and fan trays are hot-swappabl
• B. It supports unified port
• C. It is offered in a one-rack-unit form facto
• D. It has one expansion slo
• E. It supports up to 96 10G BASE-T port

Answer: AB

NEW QUESTION 12
Refer to the exhibit.

Which statement correctly identifies the front panel LEDs on the Cisco UCS C220 Server?

• A. A is power button and power status LED; B is identification button and LED; C is system status LED; D is network link activity LE
• B. A is network link activity LED; B is system status LED; C is power button and power status LED; D is identification button and LE
• C. A is system status LED; B is network link activity LED; C is power button and power status LED; D is identification button and LE
• D. A is network link activity LED; B is system status LED; C is identification button and LED; D is power button and power status LE

Answer: A

NEW QUESTION 13
Which two major components does a Cisco Nexus 1000V Series Switch have? (Choose two.)

• A. Virtual Fiber Channel Module
• B. Virtual Ethernet Module
• C. Virtual Supervisor Module
• D. Virtual Memory Controller Module
• E. Virtual Network Module

Answer: BC

NEW QUESTION 14
Which action should the administrator take before physically removing a blade server for maintenance or replacement?

• A. Force the server to shut dow
• B. Disassociate the service profil
• C. Decommission the serve
• D. Perform a graceful shutdown of the serve

Answer: C

NEW QUESTION 15
To do a password recovery on a Cisco NX-OS Switch, which option shows the correct syntax to display the bootflash contents at the switch(boot)#?

• A. display bootflash:
• B. show bootflash:
• C. dir bootflash:
• D. find bootflash:

Answer: C

NEW QUESTION 16
Which two statements about DIMM replacement in Cisco UCS Servers are true? (Choose two.)

• A. In blade servers, DIMMs can be installed in either 1, 2, 4, or 8 DIMMs per channe
• B. Rack-mount and blade servers have memory fault LEDs that indicate which DIMM requires attentio
• C. In servers that require pairs of DIMMs, the pairs must be identical (manufacturer, size, part #, and so on).
• D. If the memory in a server is not fully populated, you can install DIMMs in any open slo

Answer: AC

NEW QUESTION 17

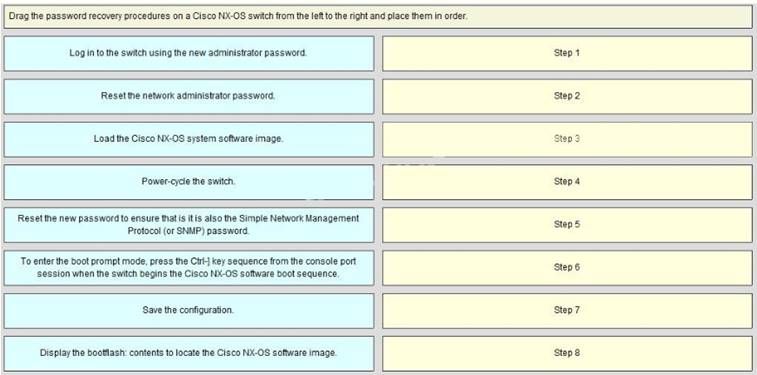

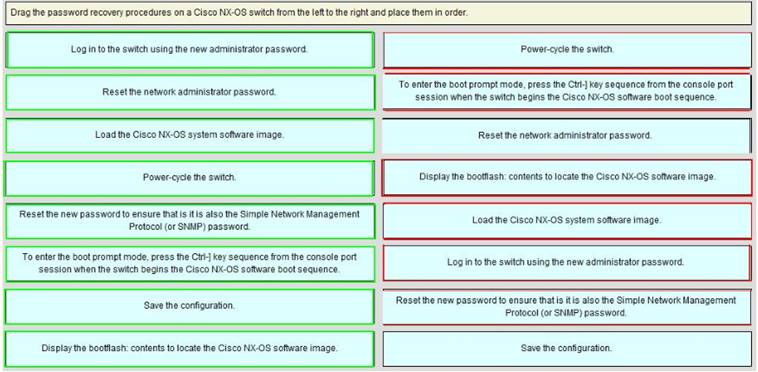

DRAG DROP

• A. Mastered
• B. Not Mastered

Answer: A

Explanation:

NEW QUESTION 18
Refer to the exhibit.

Which three options are features of the Cisco UCS 6248UP Fabric Interconnect front panel? (Choose three.)

• A. Console port
• B. FCoE port
• C. 10 Gb/s port
• D. Fan module
• E. USB port

Answer: ADE

NEW QUESTION 19
Which tool does a network administrator not need when installing hardware?

• A. cable tester
• B. wrench set
• C. cable wraps
• D. needle-nose pliers
• E. PCMCIA memory
• F. soldering iron with grounded tip

Answer: F

NEW QUESTION 20
Which command-line interface mode is best described by this prompt?
UCS-switch-A (nxos)#

• A. maintenance mode
• B. EXEC mode
• C. local management mode
• D. global configuration mode
• E. Cisco IOS mode

Answer: B

NEW QUESTION 21
Which Cisco Nexus 5000 Series model supports 1/10G BASE-T ports?

• A. Cisco Nexus 5548P
• B. Cisco Nexus 5548UP
• C. Cisco Nexus 5596UP
• D. Cisco Nexus 5596T

Answer: D
