Updated Implementing And Operating Cisco Collaboration Core Technologies 350-801 Real Exam

NEW QUESTION 1
Which configuration on Cisco UCM is required for SIP MWl to work?

• A. Assign an MWl extension on the mailbox.
• B. The line partition must be inside the inbound CSS assigned to the CUC SIP trunk.
• C. The line partition must be inside the rerouting CSS assigned to the Cisco Unity Connection SIP trunk.
• D. Set the"Enable message waiting indicator" on the port group.

Answer: B

Explanation:
The line partition must be inside the inbound CSS assigned to the CUC SIP trunk. This ensures that the SIP MWI messages are sent to the correct destination.
The other options are incorrect because:
Assigning an MWI extension on the mailbox is not required for SIP MWI to work.
The line partition does not need to be inside the rerouting CSS assigned to the Cisco Unity Connection SIP trunk.
Setting the "Enable message waiting indicator" on the port group is not required for SIP MWI to work.

NEW QUESTION 2
The IP phones al a customer site do not pick an IP address from the DHCP An engineer must temporarily disable LLDP on all ports of the switch to leave only CDP. Which two commands accomplish this task? (Choose two.)

• A. Switch# copy running-config startup-config
• B. Switch(config)# no lldp run
• C. Switch# configure terminal
• D. Switch(conlicj)# interface GigabitEthernet1/0/1
• E. Switch(config># no lldp transmit

Answer: BC

NEW QUESTION 3
Which SNMP service must be activated manually on the Cisco Unified Communications Manager after installation?

• A. Cisco CallManager SNMP
• B. SNMP Master Agent
• C. Connection SNMP Agent
• D. Host Resources Agent

Answer: A

NEW QUESTION 4
Which value should be changed when each Cisco UCM node does not allow for more than 5000 phones to be registered?

• A. Maximum Number of Registered and Unregistered Devices service parameter on each node
• B. Minimum Number of Phones service parameter on each node
• C. Maximum Number of Registered Devices service parameter on each node
• D. Maximum Number of Phones service parameter on the Publisher

Answer: C

NEW QUESTION 5
Why would we not include an end user’s PC device in a QoS trust boundary?

• A. The end user could incorrectly tag their traffic to advertise their PC as a default gateway.
• B. The end user could incorrectly tag their traffic to bypass firewalls.
• C. There is no reason not to include an end user's PC device in a QoS trust boundary.
• D. The end user may incorrectly tag their traffic to be prioritized over other network traffic.

Answer: D

NEW QUESTION 6
An engineer configures Cisco UCM to prevent toll fraud. At which two points does the engineer block the pattern in Cisco UCM to complete this task? (Choose two.)

• A. partition
• B. route partem
• C. translation pattern
• D. CSS
• E. route group

Answer: AD

NEW QUESTION 7

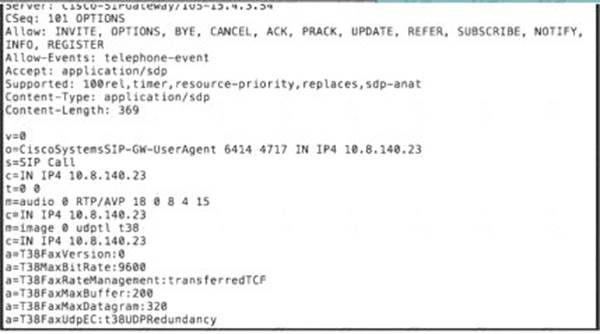

Refer to the exhibit.

A customer wants the SIP 200 OK shown to advertise codecs in the following order:

After correcting the codec preferences. What should the audio payload show in the SIP Traces?

• A. Option A
• B. Option B
• C. Option C
• D. Option D

Answer: D

NEW QUESTION 8
An engineer is deploying Webex app on Microsoft Windows computers. The engineer wants to ensure that the end users do not receive pop-IQ dialogues %'hen they start the application 'Much two actions ensure the end users are not promted to accept the end-user license (Choose two )

• A. Set the DELETEUSERDATA=r installation argument
• B. Set the "HKEY_LOCAL_MACHINE,.Software'«WOW6432Node .CiscoCollabHost -Eula_disable
• C. Set the "HKEY_LCX^M._MACHINE .SoftwareCiscoCollabHo$t€ula Setting registry Eula_disable
• D. Set the DEFAULT^'THEMEs-Dark"" installation argument
• E. Set the "/quiet installation argument

Answer: BC

Explanation:
The correct answers are B and C.
To ensure that end users are not prompted to accept the end-user license agreement (EULA) when they start the Webex app, the engineer must set the following two registry keys:
HKEY_LOCAL_MACHINE\Software\WOW6432Node\CiscoCollabHost\Eula_disable
HKEY_LOCAL_MACHINE\Software\CiscoCollabHost\Eula Setting\Eula_disable
Setting these registry keys will disable the EULA prompt for all users who start the Webex app.
The other options are not valid actions to ensure that end users are not prompted to accept the EULA.

NEW QUESTION 9
Which information is needed to restore the backup of a Cisco UCM publisher successfully?

• A. the TFTP server details
• B. the application credentials for Cisco UCM
• C. the security password for Cisco UCM
• D. the FTP server details

Answer: C

NEW QUESTION 10
When multiple potential patterns are present, which two things are considered when Cisco UCM selects a destination pattern? (Choose two.)

• A. The pattern matches the shortest explicit prefix.
• B. The pattern does not match the dialed string.
• C. The pattern represents the smallest number of endpoints.
• D. The pattern matches the dialed string.
• E. The pattern represents the largest number of endpoints.

Answer: AD

NEW QUESTION 11
An administrator is asked to implement toll fraud prevention in Cisco UCM, specifically to restrict off-net to off-net call transfers. How is this implemented?

• A. Enforce ad-hoc conference restrictions.
• B. Set the appropriate service parameter.
• C. Implement time-of-day routing.
• D. Use the correct route filters.

Answer: B

Explanation:
To restrict off-net to off-net call transfers, an administrator can set the "Block Offnet to Offnet Transfer" service parameter to "On". This will prevent users from transferring calls from one external number to another external number.
The other options are not correct because:
A. Enforce ad-hoc conference restrictions: This will prevent users from creating ad-hoc conferences, but it will not prevent them from transferring calls.
C. Implement time-of-day routing: This will allow calls to be routed to different destinations based on the time of day, but it will not prevent users from transferring calls.
D. Use the correct route filters: This will allow calls to be filtered based on the destination, but it will not prevent users from transferring calls.

NEW QUESTION 12
An engineer with ID012345678 must build an international dial plan in Cisco UCM. Which action is taken when building a variable-length route pattern?

• A. configure single route pattern for international calls
• B. set up all international route patterns to 0.!
• C. reduce the T302 timer to less than 4 seconds
• D. create a second route pattern followed by the # wildcard

Answer: D

Explanation:
When building a variable-length route pattern, you need to create a second route pattern followed by the # wildcard. This will allow the user to indicate the end of the number by dialing #. For example, if you want to create a route pattern for international calls, you would create a route pattern like this: 9.011!#
This route pattern will match any number that starts with 9.011, followed by any number of digits, and then ends with #.
The other options are incorrect because:
Configuring a single route pattern for international calls will not allow the user to indicate the end of the number.
Reducing the T302 timer to less than 4 seconds will not allow the user to indicate the end of the number.

NEW QUESTION 13
Which two steps should be taken to provision a phone after the Self-Provisioning feature was configured for end users? (Choose two.)

• A. Ask the Cisco UCM administrator to associate the phone to an end user.
• B. Plug the phone into the network.
• C. Dial the hunt pilot extension and associate the phone to an end user
• D. Dial the self-provisioning IVR extension and associate the phone to an end user.
• E. Enter settings menu on the phone and press * ,*,# (star, star, pound).

Answer: BD

NEW QUESTION 14
Which version is used to provide encryption for SNMP management traffic in collaboration deployments?

• A. SNMPv1
• B. SNMPv3
• C. SNMPv2
• D. SNMPv2c

Answer: B

NEW QUESTION 15
When a call Is delivered to a gateway, the calling and called party number must be adapted to the PSTN service requirements of the trunk group. If a call is destined locally, the + sign and the explicit country code must be replaced with a national prefix. For the same city or region, the local area code must be replaced by a local prefix as applicable. Assuming that a Cisco UCM has a SIP trunk to a New York gateway (area code 917). which two combinations of solutions localize the calling and called party for a New York phone user? (Choose two.)

• A.
• B.
• C.
• D.
• E.

Answer: BC

NEW QUESTION 16

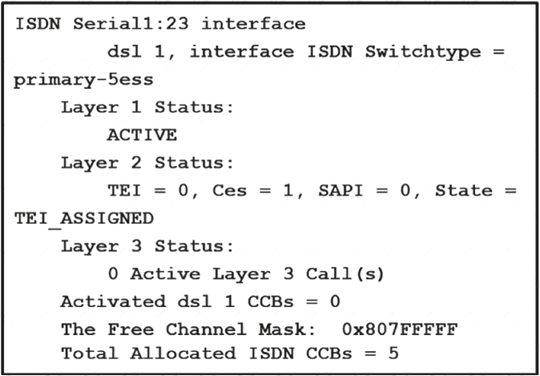

Refer to the exhibit.

What causes the PRI issue?

• A. The controller shut down
• B. The cable is unplugged
• C. The framing is configured incorrectly
• D. The clock source is incorrect.

Answer: B

Explanation:
The show controller t1 command shows that the T1 interface is up but the line protocol is down. This indicates that the physical layer is working but the data link layer is not. The most likely cause of this is that the cable is unplugged.

NEW QUESTION 17
Where in Cisco UCM is restrictions on audio bandwidth configured?

• A. location
• B. partition
• C. region
• D. serviceability

Answer: C

NEW QUESTION 18
Which DSCP marking is represented as 101110 in an IP header?

• A. EF
• B. CS3
• C. AF41
• D. AF31

Answer: A

NEW QUESTION 19
Refer to the exhibit.

An administrator must replace the T1 card with an E1 card. What is the correct configuration if the administrator was asked to configure 12 time slots?

• A.
• B.
• C.
• D.

Answer: C

NEW QUESTION 20
An administrator troubleshoots call flows and suspects that there are issues with the dial plan. Which tool enables a quick analysis of the dial plan and provides call flows of dialled digits?

• A. Cisco Dial Plan Analyzer
• B. Dial Plan Analyzer
• C. Digit Analysis Analyzer
• D. Dialed Number Analyzer

Answer: D
